GN 2376

Stainless Steel-Plates

with threaded studs, for hinges GN 7237, GN 235

GN 2376

Stainless Steel-Plates
Stainless Steel-Plates

GN 2376

Stainless Steel-Plates
Stainless Steel-Plates

Stainless Steel AISI 304 NI

matte, ground MT

Threaded studs

Stainless Steel AISI 304

pressed-in

Stainless Steel-Plates GN 2376 are designed as accessories for multiple families of hinges. They make additional threaded holes, bolts, nuts and washers unnecessary during installation. This eliminates the labor-intensive pre-installation of such parts as well as the need to hold them in place during tightening or loosening.

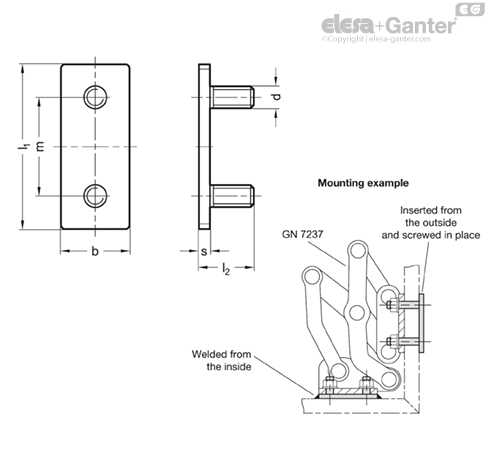

The Stainless Steel-Plates are fastened from the outside via through-holes in the housing wall or alternatively by welding to the inside of the wall. This results in effective protection against vandalism, and the outsides of the housing remain free of attachments that do not match the design or that should be avoided entirely in the interests of easy cleaning.

  • other threaded stud lengths
  • other plate sizes
  • other plate geometries
