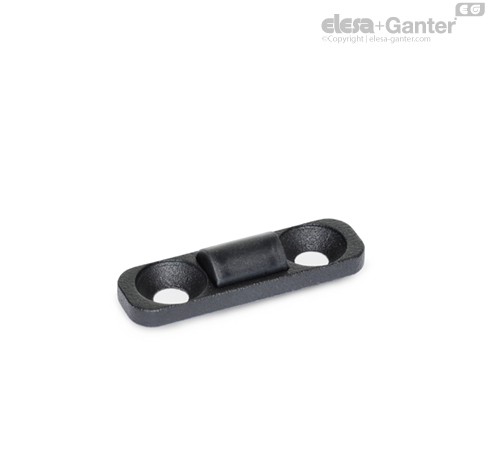

GN 2374

Rubber bumper stops

for hinges GN 237, CFM, GN 337 and CFMY.

GN 2374

Rubber bumper stops
Rubber bumper stops

GN 2374

Rubber bumper stops
Rubber bumper stops

Steel precision casting ST

zinc plated, plastic coated

black, RAL 9005, textured finish SW

Elastomer element

  • Perbunan® (NBR)
  • temperature resistant up to 120 °C
  • Hardness 85±5 Shore A

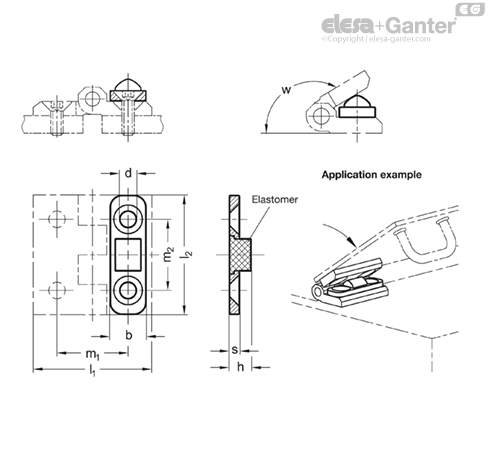

In terms of their dimensions, limit stops GN 2374 have been designed as extras for the GN 237 - andGN 337 - family of hinges. They can also be bolt-attached when mounting the hinge, with an elastomer element limiting the angle of rotation to the value w.

They are mainly used for lighter traps and gates, or when the limit stop is not expected to be exposed to dynamic loads.
