GN 2370

Stainless Steel-Spacer plates

for hinges GN 235, GN 237, GN 337, CFMY, CFM, GN 437 and GN 7237

GN 2370

Stainless Steel-Spacer plates
Stainless Steel-Spacer plates

GN 2370

Stainless Steel-Spacer plates
Stainless Steel-Spacer plates

Stainless Steel AISI 304 NI

matte, ground MT

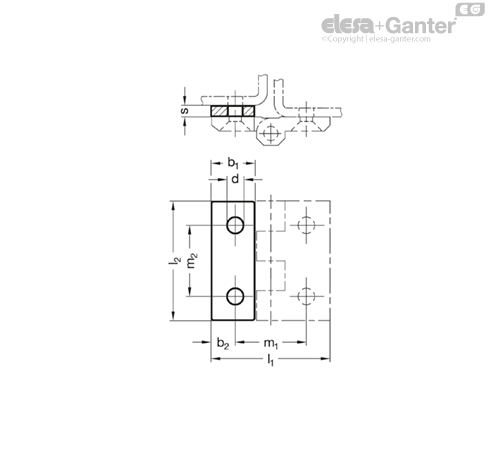

Tolerances of chamfers, different sheet metal thicknesses or the use of seals could mean that the mounting surfaces of the hinges on the frame and door do not have the desired separating distance.

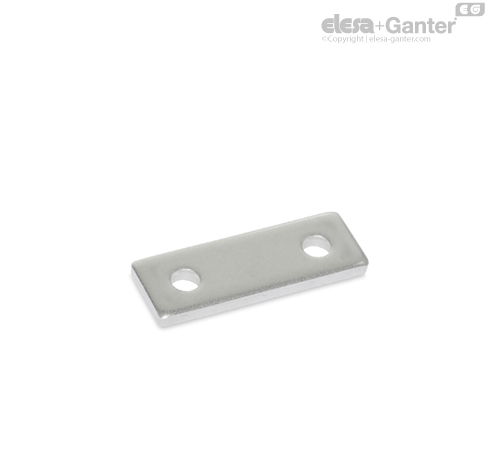

Stainless Steel-Spacer plates GN 2370 are designed as accessories for multiple families of hinges, and their dimensions allow them to be used as shims either individually or in combination to achieve the desired position or height compensation.

Height compensationPlate thickness s
11
1.51.5
21 + 1
2.51 + 1.5
33
43 + 1
4.53 + 1.5
55
63 + 3
6.55 + 1.5
85 + 3
105 + 5

The table includes a number of potential compensation heights which can be accomplished by shimming with one or two spacer plates.
