GN 237.3-A4-A

Stainless Steel-Heavy duty hinges
For particularly aggressive environments, with bores for countersunk screws

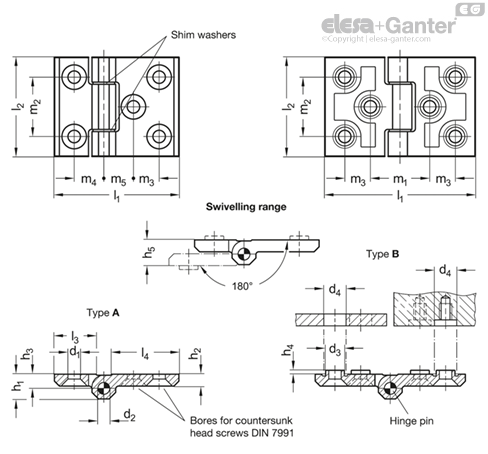

Types

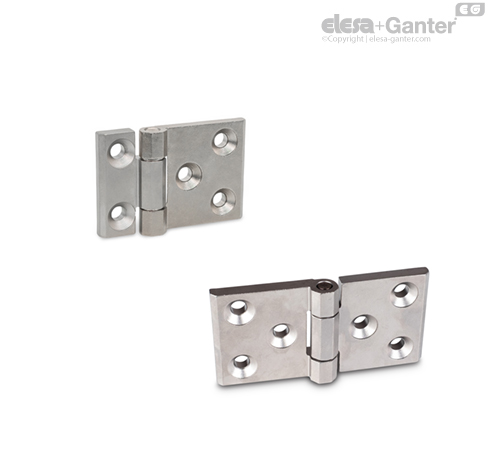

  • Type A: With bores for countersunk screws

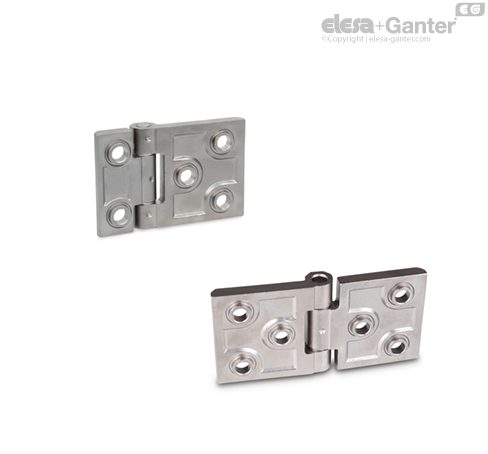

  • Type B: With bores for countersunk screws and centering attachments
Version NI

Hinge leafs

Stainless steel, German Material No. 1.4405 NI

Martensite (C1)

  • Matte shot-blasted finish GS

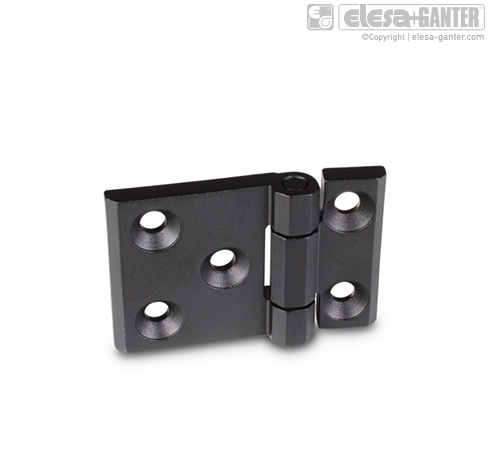

  • Powder coated
  • Black, RAL 9005, textured finish SW

Hinge pin

Stainless steel AISI 440B

  • Tempered
  • With special grease lubricated

Shim washers

Stainless steel AISI 301

With special grease lubricated

Version A4

Hinge leafs

Stainless steel AISI 316 A4

Matte shot-blasted finish GS

Hinge pin

Stainless steel AISI 318LN

  • Nickel plated
  • With special grease lubricated, FDA compliant, class H1

Shim washers

Stainless steel AISI 316Ti

With special grease lubricated, FDA compliant, class H1

Horizontally elongated heavy duty hinges GN 237.3 are designed for use under tough conditions. Attachment points with a wider spacing and more installation holes allow a more effective introduction of force into the mounting surface. The hinge pins are integral and allow the hinges to be used in environments with strong vibrations and shocks.

The material of the hinge leaves (Version NI) is very robust and, thanks to the martensite structure, is suitable for use in aggressive environments, albeit subject to some restrictions. The heavy-duty hinges (Version A4) can also be used in particularly aggressive environments thanks to the materials used. Wear is minimized by the effective friction pairing of the hinge components and lubrication.

The type B hinge has centering attachments that prevent lateral slippage under high loads and protect the mounting screws from impermissible transverse force.
