GN 2291

Hinge wings

for aluminum profiles / panel elements

GN 2291

Hinge wings
Hinge wings

GN 2291

Hinge wings
Hinge wings

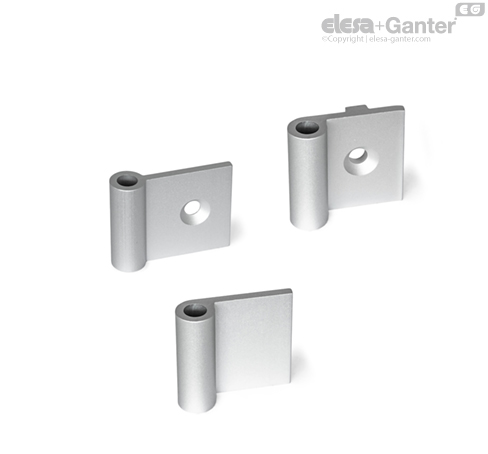

Types

  • Type AF: exterior hinge wing
  • Type AN: exterior hinge wing, with guide step
  • Type IF: interior hinge wing
  • Type IN: interior hinge wing, with guide step

Identification no.

  • No. A: without bores
  • No. C: with countersunk holes

Aluminum EL

anodized, natural color

GN 2291 Hinge wings can be combined with GN 2290 bolt sets into individualized hinge versions.

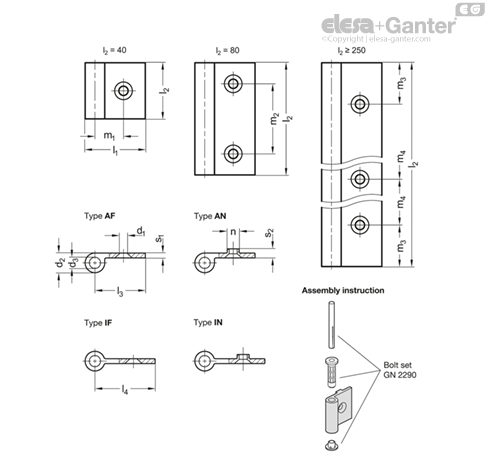

As of a hinge wing length of l2 ≥ 250 mm, individual lengths can be realized by shortening the hinge wing given the greater hole spacings.

Bolt sets GN 2290

  • other lengths and hole spacings
  • other finishes

left / right hinges

Right or left hinges can be created by the direction in which the bearing bushings are inserted into the hinge wing.



Mounting on door frames

For mounting a door that should be removable, two hinges of the same type must be attached to the door frame.

If the door is not supposed to be removable, the door must be mounted with at least one right hinge and at least one left hinge.



Mounting

1. Position the bearing bushing with the desired installation direction on the hinge wing. Then insert a screw with a collar such as an ISO 7380 oval head screw into the bearing bushing to protect the bearing bushing collar from damage while pounding in.

2. Pound in the bearing bushing until about 1 mm remains between the bearing bushing collar and the hinge wing.

3. Remove the burr on the bearing bushing using a knife.

4. Pound in the bearing bushing all the way.

5. Remove the screw.

6. Pound a tapered dowel pin into the bearing bushing.

7. Place the cover cap on the opposite side of the hinge wing.

Insert the other bearing bushings according to points 1 to 5.
