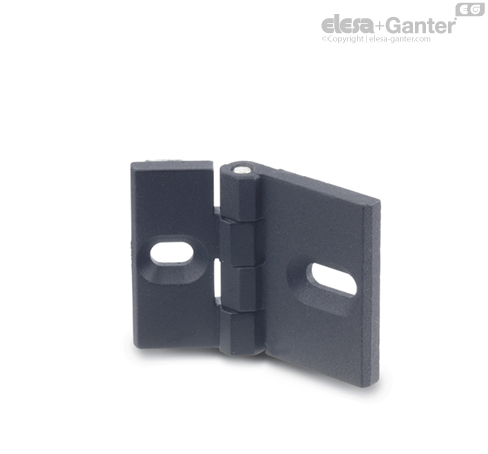

GN 161

Hinges

Accessory for profile systems / Zinc die casting

GN 161

Hinges
Hinges

GN 161

Hinges
Hinges

Zinc die casting

plastic coated

black, textured finish

Pin

Stainless Steel AISI 303

Hinges GN 161 have been designed for commercially available profile rails.

With three different types of hinges only, 66 different groove distances „n“ can be accommodated. To achieve this the positioning elements are set in specially marked recesses in the hinge wings.

The rectangular (8x10 mm) positioning elements, two pieces per hinge wing, will prevent a misalignment. They will also carry the weight of the door.

For screwing the hinges onto the profile rails, special T-Nuts are used.

GN 161-57--GN 161-68--GN 161-80--
nm1m2nm1m2nm1m2
Groove distance--Groove distance--Groove distance--
3316.516.537.516.521422121
3416.517.53816.521.542.52121.5
3516.518.53916.522.543.52122.5
35.516.5194016.523.544.52123.5
36.516.52042.516.526472126
3517.517.54416.527.548.52127.5
3617.518.547.516.531522131
36.517.51938.517.5214321.521.5
37.517.5203917.521.54421.522.5
3718.518.54017.522.54521.523.5
37.518.5194117.523.547.521.526
38.518.52043.517.5264921.527.5
3819194517.527.552.521.531
39192048.517.5314522.522.5
40202039,518.5214622.523.5
---4018.521.548.522.526
---4118.522.55022.527.5
---4218.523.5-22.531
---44.518.5264723.523.5
---4618.527.549.523.526
---49.518.5315123.527.5
---40192154.523.531
---40.51921.5522626
---41.51922.553.52627.5
---42.51923.5572631
---4519265527.527.51
---46.51927.558.527.531
---501931623131
---412021---
---41.52021.5---
---43.52023.5---
---462026---
---47.52027.5---
---512031---

Swivelling range



Assembly instruction



Application example
