GN 136-extended

Sheet metal hinges

Steel / Stainless Steel, Horizontally Elongated

GN 136-extended

Sheet metal hinges
Sheet metal hinges

GN 136-NI-extended

Sheet metal hinges
Sheet metal hinges

GN 136-extended

Sheet metal hinges
Sheet metal hinges

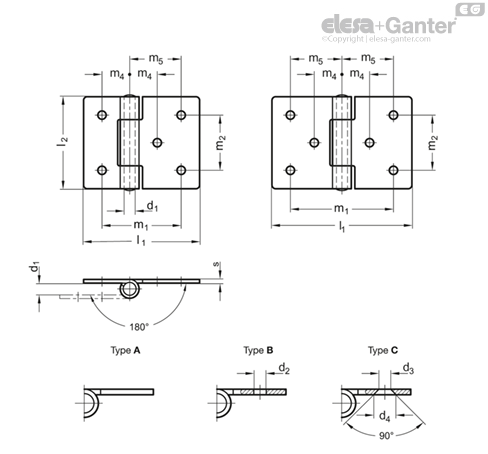

Types

  • Type A: without bores (only in Stainless Steel NI)
  • Type B: with through-holes
  • Type C: with countersunk holes

Version in Steel

Steel ST

  • only type B and C
  • zinc plated, blue passivated

Pin, Stainless Steel AISI 304, riveted

Version in Stainless Steel

Stainless Steel AISI 304 NI

all types

Pin, Stainless Steel AISI 304, riveted

GN 136 sheet metal hinges are available in many different versions and are suitable for light to medium-duty applications.

Type A can be fixed in place by welding or by using holes made by the customer.
