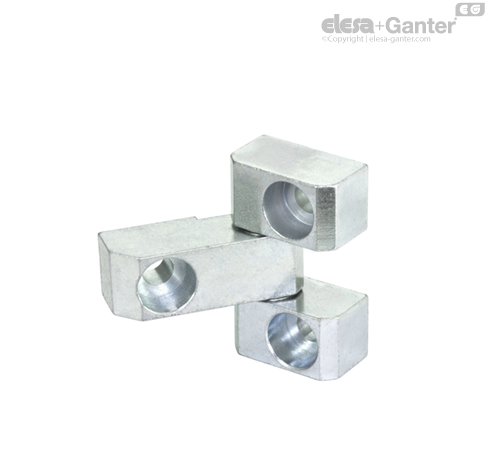

GN 129.3

Hinges

consisting of three parts / Steel

GN 129.3

Hinges
Hinges

GN 129.3

Hinges
Hinges

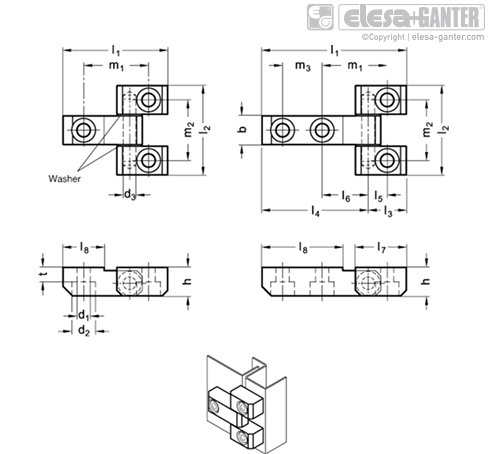

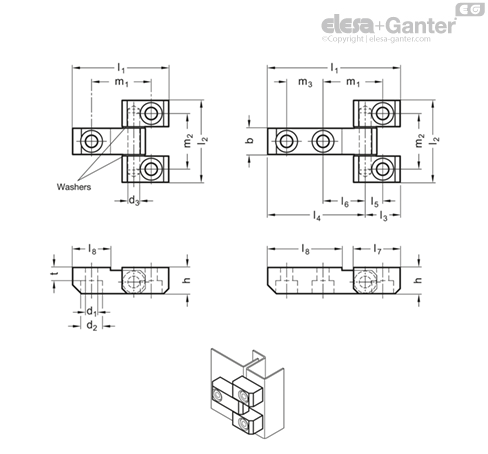

Type

Type A: Fixing from the front side

Steel zinc plated, blue passivated ST

Pin

Brass, nickel plated

Washer

Brass, nickel plated

Hinges GN 129.3 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.

By using cylinder screws DIN 912, they are conveniently fixed using threads on the user side or by using through screws for different clamping thicknesses.
