GN 129.2

Hinges

consisting of three parts

GN 129.2

Hinges
Steel

GN 129.2-A4

Hinges
Stainless Steel

GN 129.2-NI

Hinges
Stainless Steel

GN 129.2

Hinges
Steel

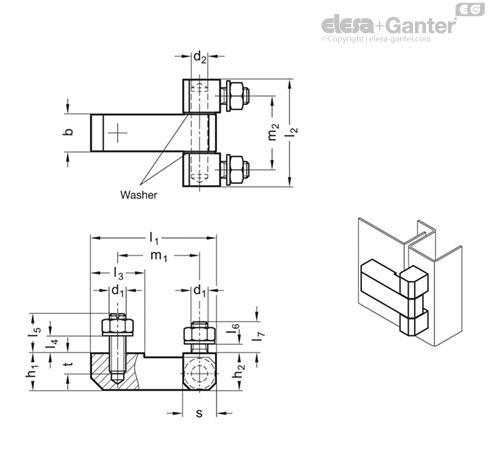

Type

Type C: Fixing from the back side

Version in Steel

Hinge

Steel zinc plated, blue passivated ST

Pin

Brass, nickel plated

Washer

Brass, nickel plated

Hexagon nut ISO 4032

Steel zinc plated, blue passivated

Serrated washer DIN 6797 for securing screws

Steel zinc plated, blue passivated

Version in Stainless Steel

Hinge body, pin, washer

  • Stainless Steel AISI 303 NI
  • Stainless Steel AISI 316L A4

Hexagon nut ISO 4032

Stainless Steel AISI 304

Serrated washer DIN 6797 for securing screws

Stainless Steel AISI 304

Hinges GN 129.2 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.

With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.
