CFMX

Hinges

SUPER-technopolymer rotating pin

CFMX-CH

Hinges
Holes for cylindrical-head screws

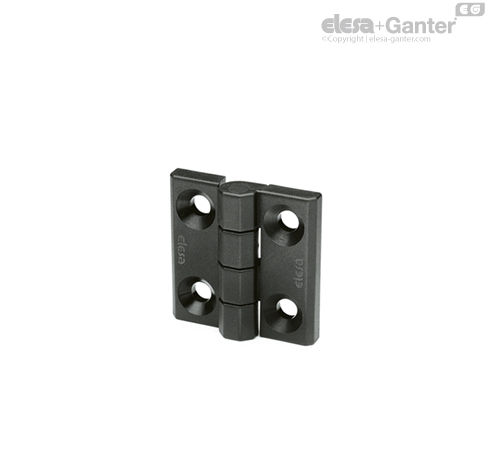

CFMX-SH

Hinges
Holes for countersunk screws

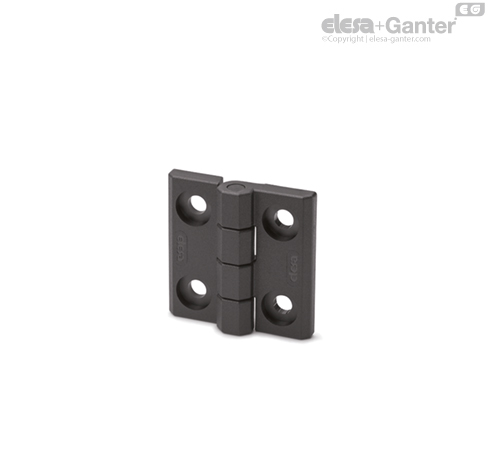

CFMX-CH

Hinges
Holes for cylindrical-head screws

Material

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Rotating pin

Glass-fibre reinforced polyamide based (PA) SUPER-tecnopolymer.

Standard executions

  • CFMX-SH: pass-through holes for countersunk head screws.

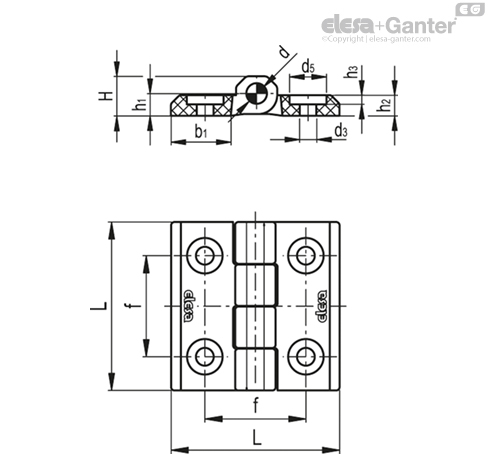

  • CFMX-CH: pass-through holes for cylindrical head screws with washer type UNI 6592 / ISO 7089.

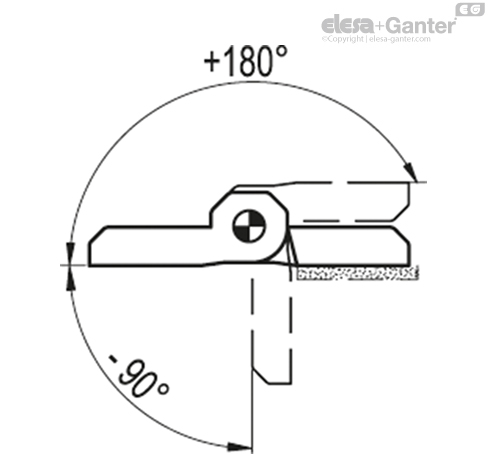

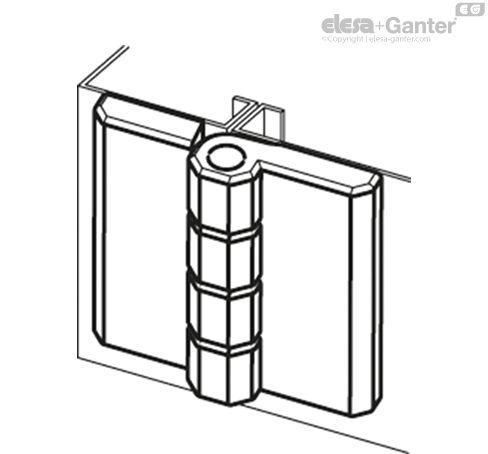

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.



Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFM_S_AXIAL______logo__CFM_S_RADIAL______logo__CFM_S_90__
DescriptionMax limit static load Sa [N]Max limit static load Sr [N]Max limit static load S90 [N]
CFMX.30 SH-410501275750
CFMX.30 CH-49751275650
CFMX.40 SH-514251425960
CFMX.40 CH-514251200750
CFMX.50 SH-6236021601550
CFMX.50 CH-6258021701220
CFMX.60 SH-6300026602700
CFMX.60 SH-8300026602700
CFMX.60 CH-8310025301950

The max static load is the value beyond which the material may break thus prejudicing the hinge performance. Obviuosly, a suitable coefficient must be applied to this value, according to the importance and the safety level of the specific application.
