CFM-TR

Hinges

SUPER-Technopolymer

CFM-TR-A

Hinges
Hinge bodies with the same dimensions

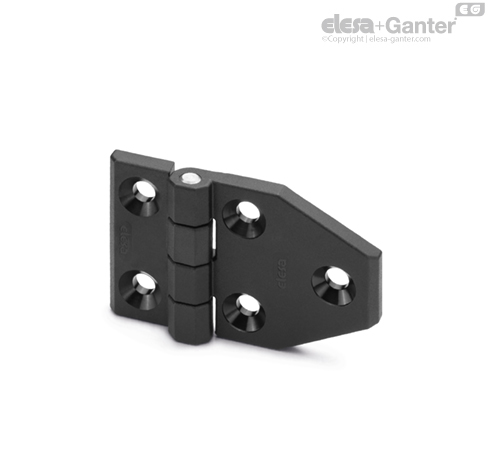

CFM-TR-B

Hinges
Hinge bodies with different dimensions

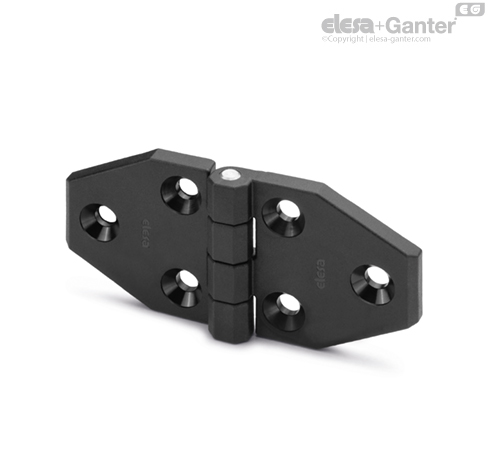

CFM-TR-A

Hinges
Hinge bodies with the same dimensions

Material

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Rotating pin

AISI 303 stainless steel.

Standard executions

Pass-through holes for countersunk head screws.

  • CFM-TR-A: hinge body frame side identical to the hinge body door side.
  • CFM-TR-B: hinge body frame side different to the hinge body door side.

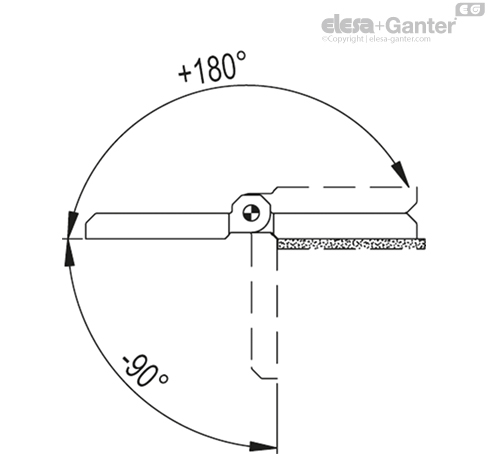

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.


Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFM_TR_S_AXIAL______logo__CFM_TR_S_RADIAL______logo__CFM_TR_S_90__
DescriptionMax limit static load
Sa [N]		Max limit static load
Sr [N]		Max limit static load
S90 [N]
CFM-TR-A.40-SH-5180020001400
CFM-TR-A.50-SH-6270033002200
CFM-TR-A.60-SH-6370042003000
CFM-TR-B.40-SH-5150018001200
CFM-TR-B.50-SH-6210030001500
CFM-TR-B.60-SH-6280038002300

The max static load is the value beyond which the material may break thus prejudicing the hinge performance. Obviuosly, a suitable coefficient must be applied to this value, according to the importance and the safety level of the specific application.
