CFM-CLEAN

Hinges

SUPER-technopolymer

CFM-CLEAN

Hinges
Hinges

CFM-CLEAN

Hinges
Hinges

Material

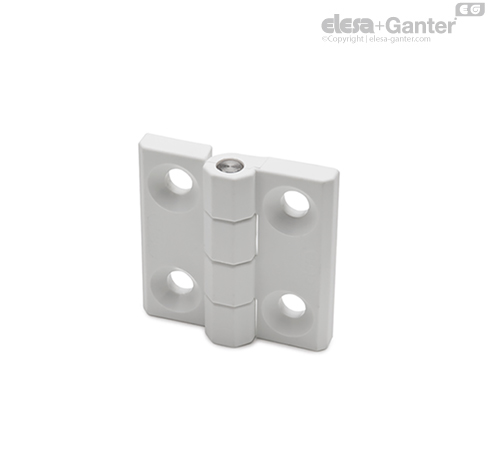

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, white colour similar to RAL 9002, matte finish.

Rotating pin

AISI 303 stainless steel.

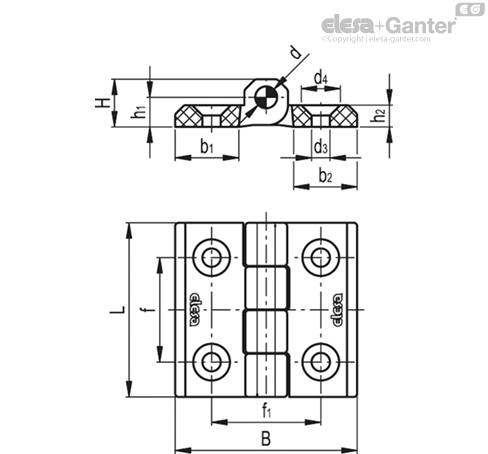

Standard execution

Pass-through holes for countersunk head screws.

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.



Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFM_S_AXIAL______logo__CFM_S_RADIAL______logo__CFM_S_90__
DescriptionMax limit static load
Sa [N]
Max limit static load
Sr [N]
Max limit static load
S90 [N]
CFM.30-SH-4-CLEAN140017001000
CFM.40-SH-5-CLEAN190019001280
CFM.50-SH-6-CLEAN263024001720
CFM.60-SH-8-CLEAN332029603070

The max static load is the value beyond which the material may break thus prejudicing the hinge performance. Obviuosly, a suitable coefficient must be applied to this value, according to the importance and the safety level of the specific application.
