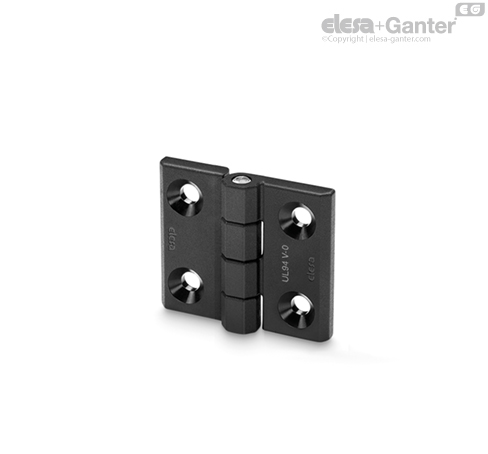

CFM-AE-V0

Hinges

Technopolymer certified self-extinguish

CFM-AE-V0

Hinges
Hinges

CFM-AE-V0

Hinges
Hinges

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, certified self-extinguishing UL-94 V0, black colour, matte finish.

Rotating pin

AISI 303 stainless steel.

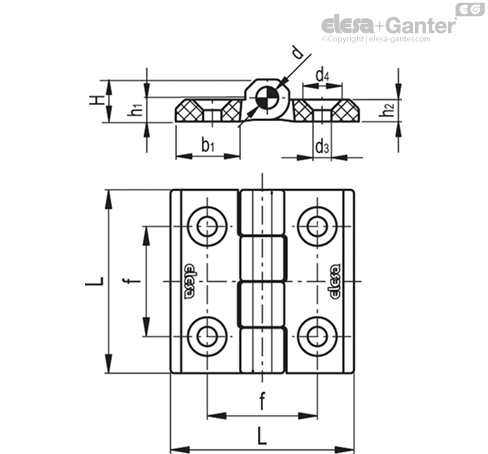

Standard execution

Pass-through holes for countersunk head screws.

Features and applications

The CFM-AE-V0 hinge can be used in all areas for which specific regulations require the use of materials capable of preventing the risk of fire.

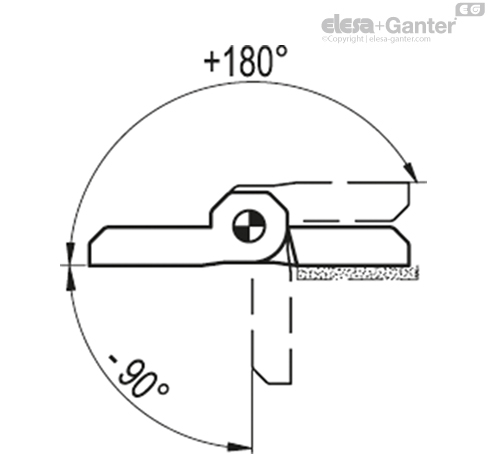

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.



Resistance testsAxial StressRadial Stress90° Angled Stress
____logo__CFM_S_AXIAL______logo__CFM_S_RADIAL______logo__CFM_S_90__
DescriptionMaximum working load
Ea [N]
Load at breakage
Ra [N]
Maximum working load
Er [N]
Load at breakage
Rr [N]
Maximum working load
E90 [N]
Load at breakage
R90 [N]
CFM.30 AE-V0 SH-430012007001700500800
CFM.40 AE-V0 SH-560012009001700550900
CFM.50 AE-V0 SH-680022001900350010001400
CFM.60 AE-V0 SH-6110020001800350012001600
CFM.60 AE-V0 SH-8110020001800350012001700

The max static load is the value beyond which the material may break thus prejudicing the hinge performance. Obviuosly, a suitable coefficient must be applied to this value, according to the importance and the safety level of the specific application.
