Hinges

Technopolymer

CFL.

Hinges
Hinges

CFL.

Hinges
Hinges

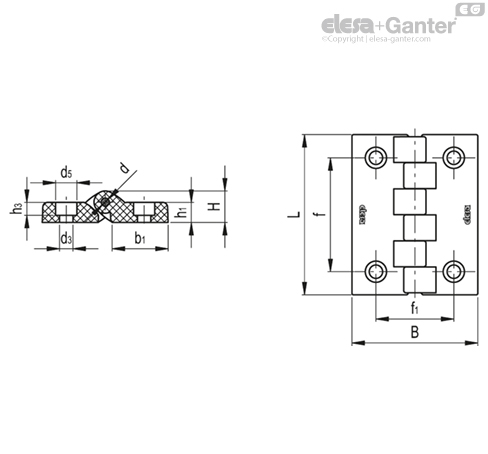

Material

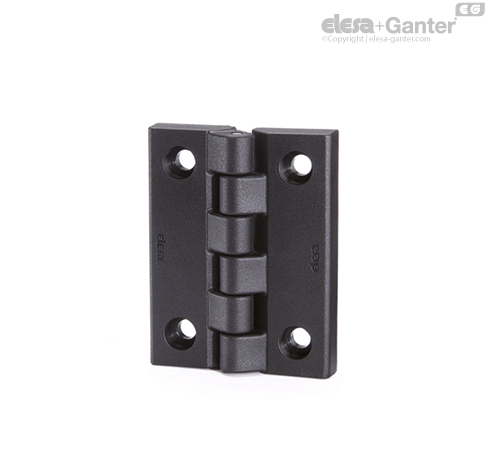

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Rotating pin

AISI 303 stainless steel.

Standard executions

Pass-through holes for cylindrical head screws.

Rotation angle (approximate value)

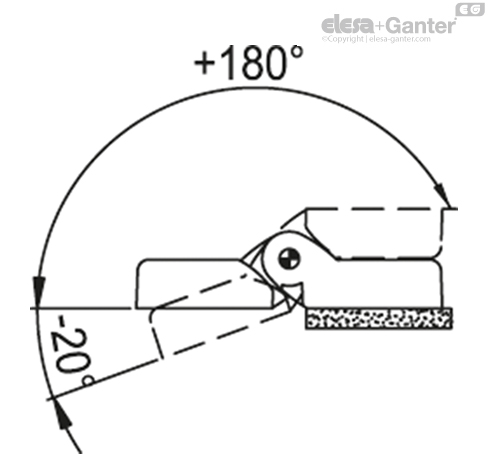

Max 200° (-20° and +180° being 0° the condition where the interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.


Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFL_S_AXIAL______logo__CFL_S_RADIAL______logo__CFL_S_90__
DescriptionMaximum working load
Ea [N]		Load at breakage
Ra [N]		Maximum working load
Er [N]		Load at breakage
Rr [N]		Maximum working load
E90 [N]		Load at breakage
R90 [N]
CFL.102 CH-640001000045001000020004000
CFL.102 CH-83500900045001000020004000
