CFI.

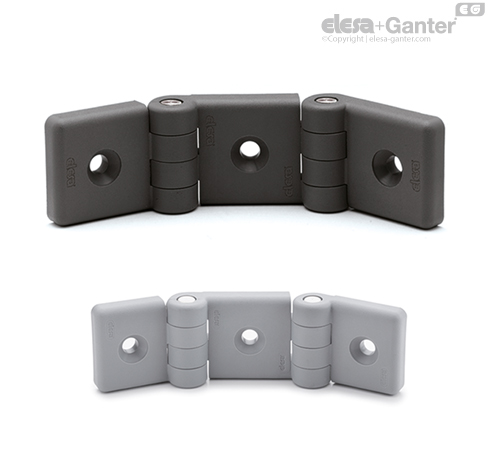

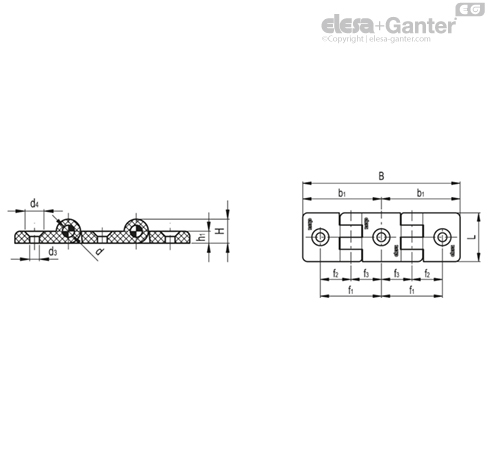

Double hinges for profiles

Technopolymer

CFI.

Double hinges for profiles
Double hinges for profiles

CFI.

Double hinges for profiles
Double hinges for profiles

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black or grey colour RAL 7040 (C33), matte finish.

Rotating pins

Nickel-plated steel.

Standard execution

Pass-through holes for M6 countersunk head screws.

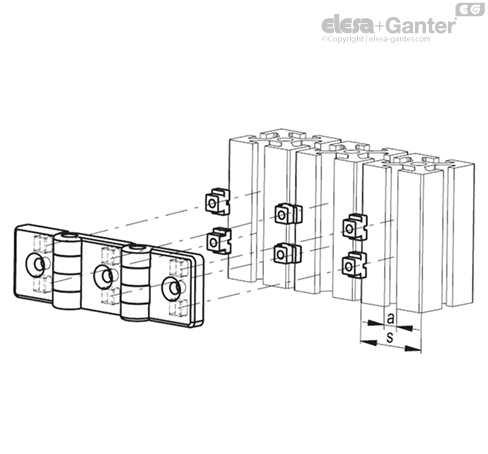

Technopolymer centering inserts (supplied)

For profiles with slot dimensions from 6 to 12 mm.

Features and applications

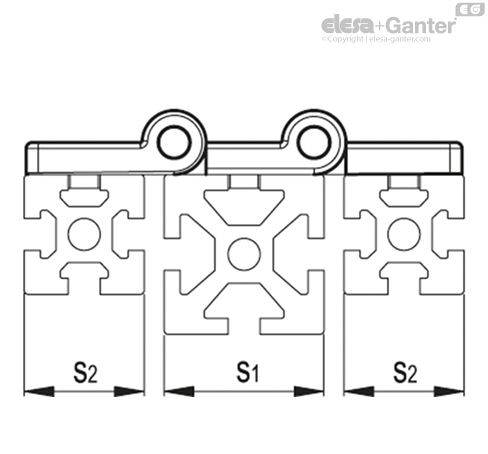

This type of hinge is recommended when, for example, one central frame is connected with two lateral doors. It can be used with aluminium profiles from 30 up to 60 mm, also combining different dimensions.

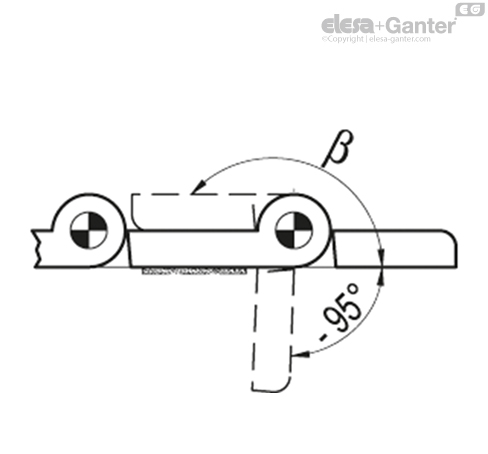

Rotation angle (approximate value)

Max 260°/275° (-95° and +165°/180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.



Profile dimensionInsert orientationInsert colour
sa
306____logo__CFG_30-6__Light grey
8____logo__CFG_30-8__
40÷458____logo__CFG_40-8__Dark grey
10____logo__CFG_40-10__
50÷6010____logo__CFG_50-10__Black
12____logo__CFG_50-12__
Centering inserts
DimensionsColour
ll1l2
862Light grey
1084Dark grey
12105Black

Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFI_S_AXIAL______logo__CFI_S_RADIAL______logo__CFI_S_90__
DescriptionMaximum working load
Ea [N]		Load at breakage
Ra [N]		Maximum working load
Er [N]		Load at breakage
Rr [N]		Maximum working load
E90 [N]		Load at breakage
R90 [N]
CFI.30-30/30 SH-64402570185037103001700
CFI.30-40/40 SH-6320228017503490220870
CFI.40-30/30 SH-6320228017503490220870
CFI.40-40/40 SH-6320228017503490220870
CFI.45-30/30 SH-6240215017603520190780
CFI.45-40/40 SH-6240215017503490190780
CFI.45-45/45 SH-6240215017603520190780
CFI.60-30/30 SH-6280151016003190180850
CFI.60-40/40 SH-6280151016003190180850
CFI.60-45/45 SH-6240151016003190180780
