CFAX.

Hinges

Technopolymer rotating pin

CFAX-B

Hinges
Bosses with threaded hole

CFAX-CH

Hinges
Pass-through holes, hexagonal head screws

CFAX-p

Hinges
Threaded studs

CFAX-SH

Hinges
Pass-through holes, countersunk-head screws

CFAX.

Hinges
Hinges

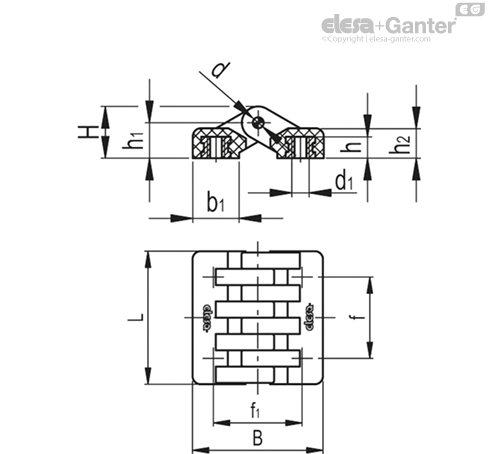

CFAX-B

Hinges
Bosses with threaded hole

Material

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Rotating pin

Acetal resin based (POM) technopolymer, black colour.

Standard executions

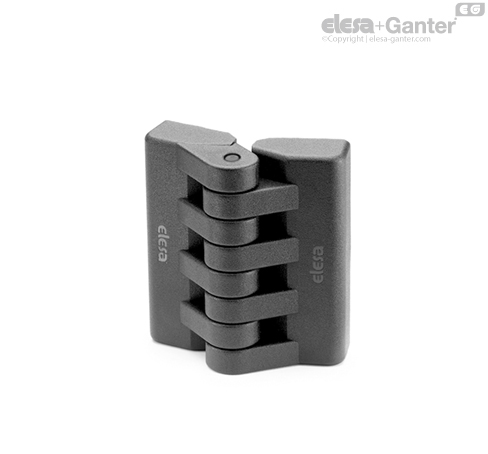

  • CFAX-B: nickel-plated brass bosses with threaded hole.

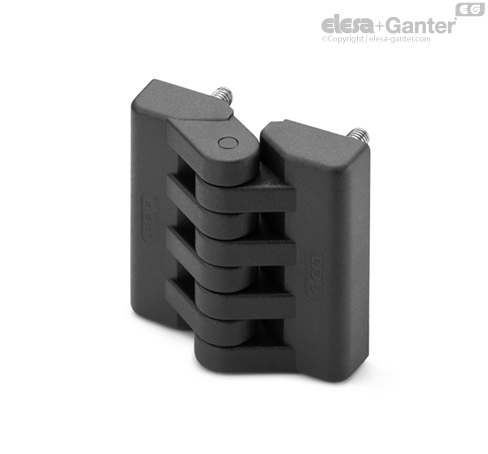

  • CFAX-p: nickel-plated steel threaded studs.

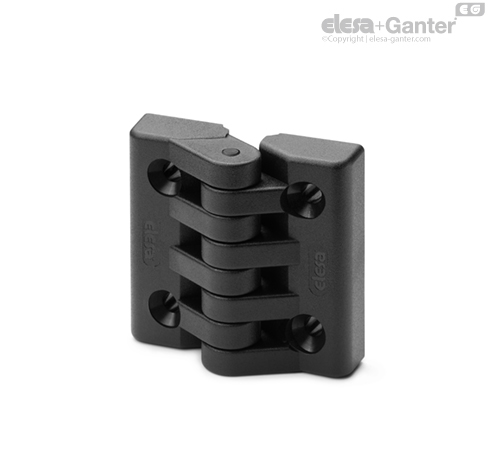

  • CFAX-SH: pass-through holes for countersunk head screws.
  • CFAX-CH: pass-through holes for cylindrical head screws.

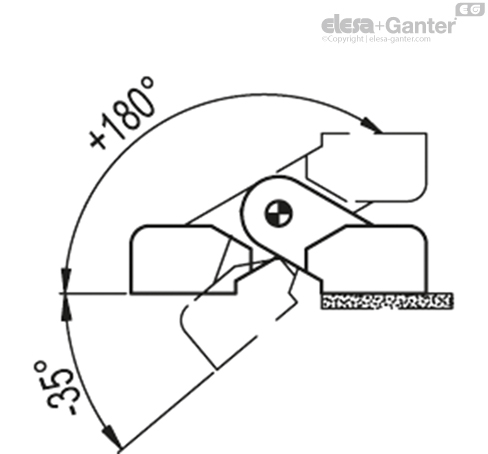

Rotation angle (approximate value)

Max 215° (-35° and + 180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.



Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFA_S_AXIAL______logo__CFA_S_RADIAL______logo__CFA_S_90__
DescriptionMaximum working load Ea [N]Load at breakage Ra [N]Maximum working load Er [N]Load at breakage Rr [N]Maximum working load E90 [N]Load at breakage R90 [N]
CFAX.40 B-M420018502402000100560
CFAX.40 SH-4130187029018002801370
CFAX.40 CH-4137134023015801801200
CFAX.49 B-M5400240044027601701320
CFAX.49 p-M5x1437030703602400200900
CFAX.49 SH-5300266031026003202240
CFAX.49 CH-5360248031022702501460
CFAX.65 B-M6640400069044002201400
CFAX.65 p-M6x18510580046045002203190
CFAX.65 SH-6520430072048002403760
CFAX.65 CH-6510370049052002602870

Other executions available

CFK.: false hinge with single body.
