GN 437.4

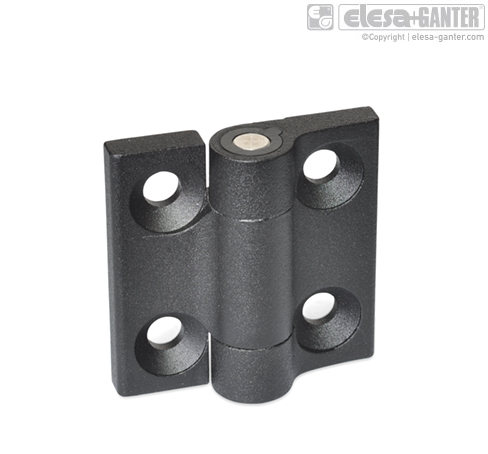

Hinges

Zinc die casting, with detent

GN 437.4

Hinges
Hinges

GN 437.4

Hinges
Hinges

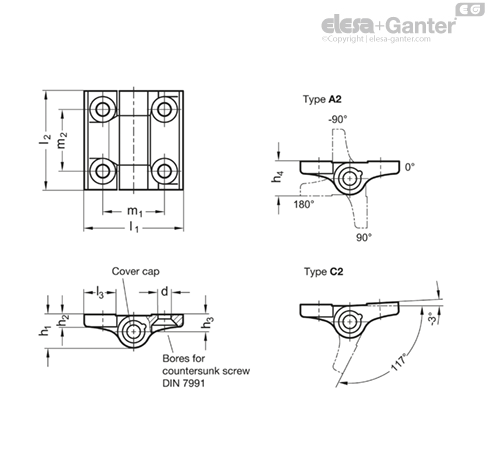

Types

  • Type A: Indexing positions -90° / 0° / 90° / 180°
  • Type C: Indexing positions -3° / 117°

Identification no.

  • 1 Holding torque 0,5 Nm
  • 2 Holding torque 1 Nm
  • 3 Holding torque 2,5 Nm
  • 4 Holding torque 4 Nm

Hinge leafs

Zinc die casting ZD

Powder coated

  • Black, RAL 9005, textured finish SW
  • Silver, RAL 9006, textured finish SR

Locking elements / Cover cap

  • Plastic, Polyacetal (POM) for identification no. 1 / 2
  • Operating temperature up to 80 °C
  • Stainless steel AISI 630 for identification no. 3 / 4

Pin

Stainless Steel AISI 303

Pressure spring

  • Spring steel for identification no. 1 / 2
  • Stainless steel AISI 301 for identification no. 3 / 4

Hinges GN 437.4 with detent hold door and covers in the given indexing position without additional mechanics.

This is particularly advantageous when machines and systems must be frequently opened and closed for loading and unloading, and it is also useful for servicing or repairs. Undesirable independent closing and opening is prevented.

Due to the front indexing position of approx. -3°, type C also ensures that the door or flap is pressed lightly against the frame when closed.
