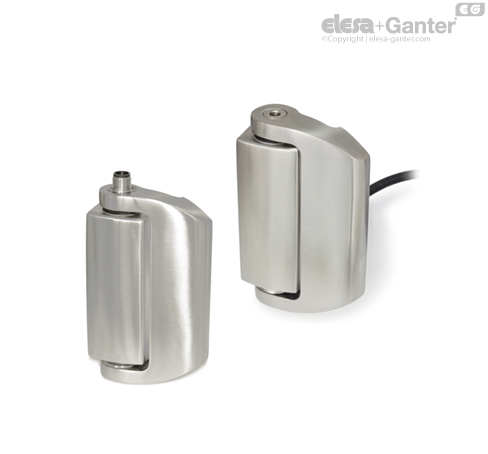

GN 139.5

Hinges with safety switch

Stainless Steel

GN 139.5

Hinges with safety switch
Hinges with safety switch

GN 139.5

Hinges with safety switch
Hinges with safety switch

Types

  • Type A: Connector plug at the top
  • Type B: Connector plug from the bottom
  • Type C: Connector plug at the back (with 0.2 m cable)
  • Type CK: Cable from the back

Stainless Steel precision casting

  • AISI 316L
  • polished, Ra < 0.8 µm

Pin

Stainless Steel AISI 316L

Hinges GN 139.5 with integrated safety switches have been designed for monitoring doors and covers of machines and plants. Opening the door will activate the switch contacts which, in turn, will then e.g. interrupt a protective circuit via break contact (NC) and at the same time signal the door opening by closing a normally open contact element (NO). The contact blocks are fitted with positive opening slow-action contacts, i.e. they will definitely be separated when activated and have no hysteresis. The angle at which the switching points are reached are adjustable.

Together with the integrated contact blocks, the hinges are a compact, easy to mount unit with an attractive design. The mounting from the back make the hinge more tamper-proof. Hinges GN 139.6 without switching function act as additional hinges, e.g. for larger doors or gates where several hinges are required.

Cable with connector coupling

8-pole, 5 or 10 meter long:

  • Cables with conntector coupling GN 330 -M12x1-8-G-5.
  • Cables with conntector coupling GN 330 -M12x1-8-G-10.

  • Hinges with operating angle > 0°
  • Hinges with other contact loadings

Mechanical features
Maximum load | Information with safety factor | Examples of calculationLoad direction____logo__139-5_bl-la______logo__139-5_bl-lr0______logo__139-5_bl-lr90__
-F max.2000 N2000 N2000 N
-
Fixingfrom the back, 10 x threads M6, 8 mm deep
Recommended torque10 Nm (Screws M6)
Protection classIP67 / IP69K (Mind the cable conduit!)acc. to EN 60529
Switching principle, contact openingSlow-action contacts force-fitted, with positive openingacc. to IEC 60947-5-1, K
Contact materialSilver alloy
Operating travel diagram (scheme)The switching points are adjustable up to 2° in direction of 0°.____logo__139-1m2__
Maximum operating frequency600 operating cycles / houracc. to IEC 60947-5-1, one operating cycle includes one opening and one closing action
Mechanical life span106 operating cyclesacc. to IEC 60947-5-1, one operating cycle includes one opening and one closing action
Actuating speedmin. 2° / second, max. 90° / secondacc. to IEC 60947-5-1, one operating cycle includes one opening and one closing action

Electrical features / Safety features
Utilization categoryAC 15: 24 Vac / 2A / DC 13: 24 Vdc / 2A (connector plug), AC 15: 250 Vac / 4A / DC 13: 250 Vdc / 0,3 A (cable)acc. to EN 60947-5-1
Contacts, termination____logo__139.5_SB-14039-0__
8-pole connector M12 or
9 wire cable with 2 m or 5 m length
Pin and cable assignment
Type of cable9x0,34 mm², PVC H05VV-F, blackacc. to IEC 60332-1
Short-circuit current1000 Aacc. to EN 60947-5-1
Rated insulation voltage30 V AC / 36 V DC (connector plug) / 250 Vac (cable)
Short-circuit protection2 A, 500 V, Typ gG (connector plug) / 3 A, 500 V, Typ gG (cable)
Ambient temperature- 25 °C up to + 80 °C
Degree of pollution, external3acc. to EN 60947-5-1
Safety parametersB10: 1 000 000, B10 d: 5 000 000, B10 / B10 d: 20%acc. to EN ISO 13849-1

Approvals, Conformities, Applicability
Low-voltage switchgear and controlgear____logo__ce-eac-ul__EN 60947-1/2007
CE declarationEN 60947-1-5 : 2004 +
EAC and UL certifiedA1/2009
Safety applicationsup to SIL 3 / PL eacc. to EN ISO 13849-1

Other important details and hints are given in the operating instruction for GN 139.5 which is included with every delivery and which is also available as PDF downloads from „www.elesa-ganter.com“ under ‚Downloads‘.

The hinges with safety switch must be mounted and commissioned by qualified technical personnel in compliance with the details given in the operating instructions and with the national and international rules and regulations and the applicable standards. Elesa+Ganter will assume no statutory liability for missing or incorrect information and for any consequences arising therefrom.
