GN 139.2

Hinges without safety switch

Zinc die casting

GN 139.2

Hinges without safety switch
Hinges without safety switch

GN 139.2

Hinges without safety switch
Hinges without safety switch

Zinc die casting

plastic coated

silver metallic

Pin

Stainless Steel AISI 303

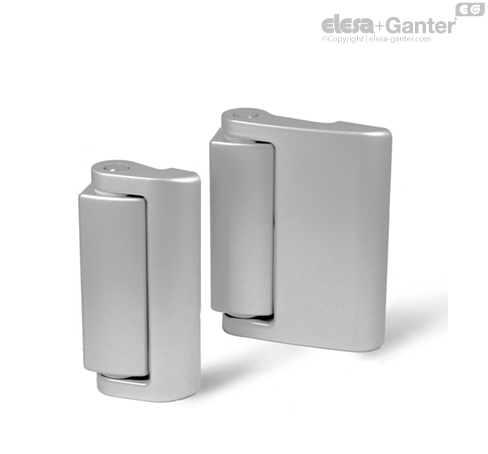

With the exception of the connector plug, hinges without safety switch GN 139.2 do not differ in their external appearance from hinges with safety switch GN 139.1. With the concealed screw connection at the back, the hinge is also tamper-proof.

The compact design combines safety and attractive appearance.

The design with broad hinge halves is intended for mounting to glass or polycarbonate doors.

Mechanical features

Mechanical features
Maximum load | Information with safety factor | Examples of calculationLoad direction____logo__139-1_bl-la______logo__139-1_bl-lr0______logo__139-1_bl-lr90__
-l1 = 491500 N1000 N1000 N
-l1 = 79750 N500 N500 N

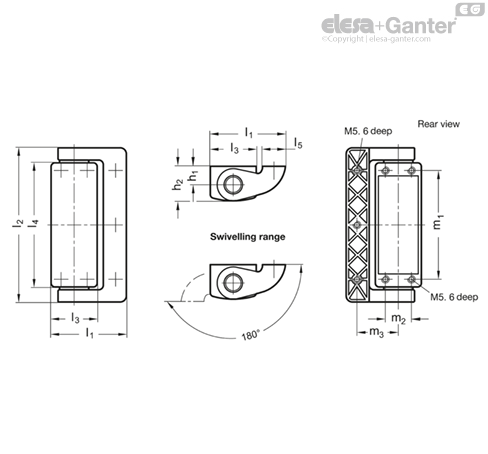

Fixingfrom the back, 7 x threads M5, 6 mm deep
Recommended torque5 Nm (Screws M5)
