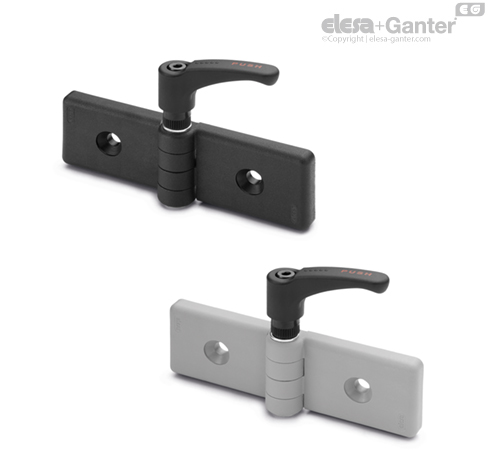

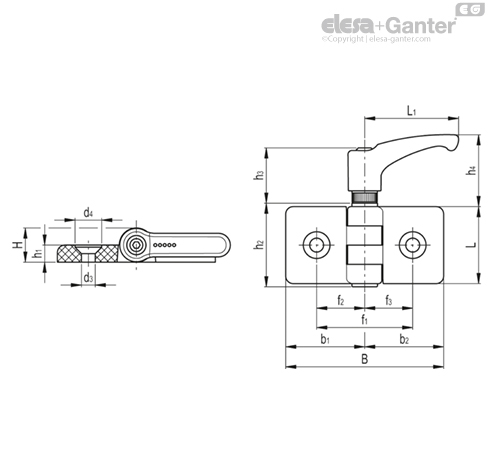

Hinges for profiles with friction locking



Hinges for profiles with friction locking
Hinges for profiles with friction locking


Hinges for profiles with friction locking
Hinges for profiles with friction locking


Glass-fibre reinforced polyamide based (PA) technopolymer, black or grey colour RAL 7040 (C33), matte finish.

Rotating pin

Zinc-plated steel.

Standard execution

Pass-through holes for M6 countersunk head screws.

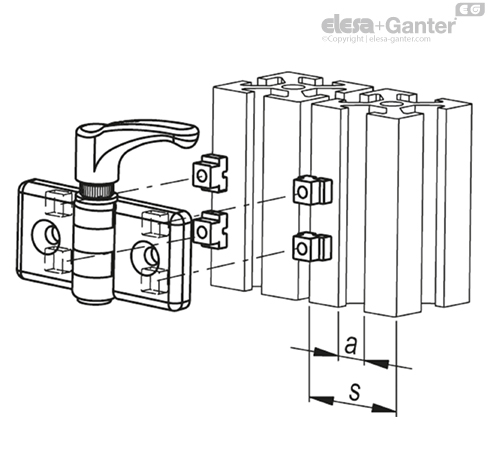

Technopolymer centering inserts  (supplied)

For profiles with slot dimensions from 6 to 12 mm.

Adjustable handle for clamping

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Red writing "PUSH" tampoprinted on the lever body (avoid contact with solvents, alcohol or detergents containing alcohol).

Black-oxide steel retaining screw, AISI 302 stainless steel return spring.

Boss with threaded blind hole in black-oxide steel.


Zinc-plated, positioned between the adjustable handle and the hinge body.

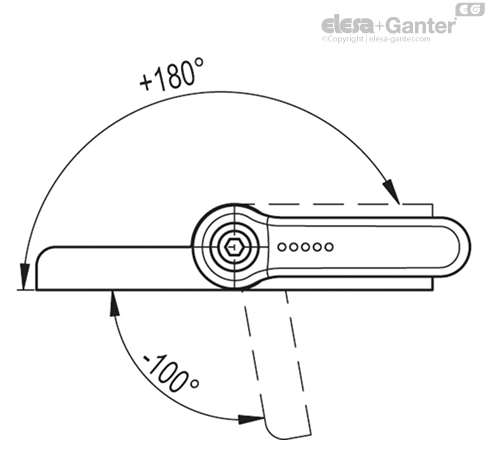

Rotation angle (approximate value)

Max 280° (-100° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines


Features and applications

The CFG-ERS hinge with friction locking enables the locking of a door in any desired position within a field of rotation of 280° with a force proportional to the torque applied to the ERS lever.

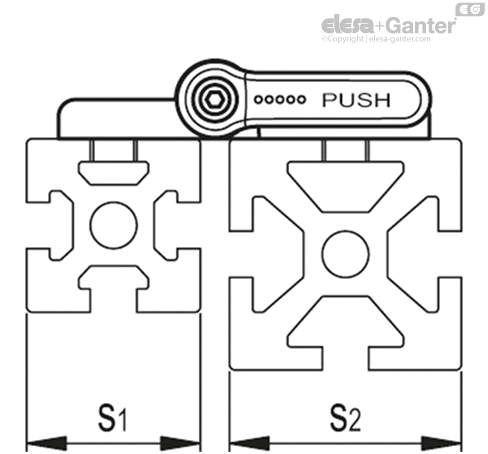

This type of hinge can be used with profiles from 30 up to 60 mm, also combining different dimensions.

Profile dimensionInsert orientationInsert colour
306____logo__CFG_30-6__Light grey
40÷458____logo__CFG_40-8__Dark grey

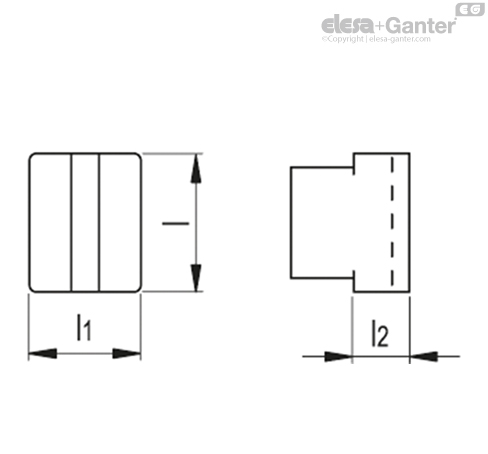

Centering inserts
862Light grey
1084Dark grey

Instructions of use

The friction effect is obtained by clamping the two hinged bodies using the special adjustable handle. To operate the adjusting mechanism, push down the lever (PUSH). By releasing the lever, the spring releases the toothing, thus the handle can return to its starting position and the lever can rotate freely together with the door without obstructing the movement, even in case of accidental shock. The high number of teeth within the adjustable handle guarantees rotation even in case of very limited movement of the lever arm.

DescriptionMaximum working load
Ea [N]
Load at breakage
Ra [N]
Maximum working load
Er [N]
Load at breakage
Rr [N]
Maximum working load
E90 [N]
Load at breakage
R90 [N]
CFG.30/30 SH-64402570185037103001700
CFG.30/40 SH-6320228017503490590870
CFG.30/45 SH-6240215017603520190780
CFG.30/60 SH-6280151016003190180850
CFG.40/40 SH-6320228017503490220870
CFG.40/45 SH-6240215017503490390780
CFG.40/60 SH-6280151016003190180850
CFG.45/45 SH-6240215017603520190780
CFG.45/60 SH-6240151016003190180780
CFG.60/60 SH-6280151016003190180850
