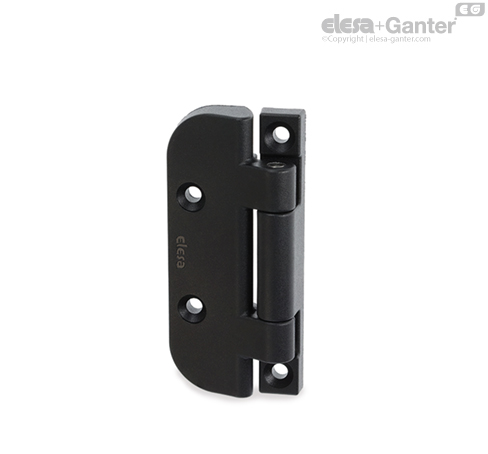

CFDA

Hinges for narrow jamb

SUPER-technopolymer

CFDA

Hinges for narrow jamb
Hinges for narrow jamb

CFDA

Hinges for narrow jamb
Hinges for narrow jamb

Material

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Rotating pin

AISI 303 stainless steel.

Standard execution

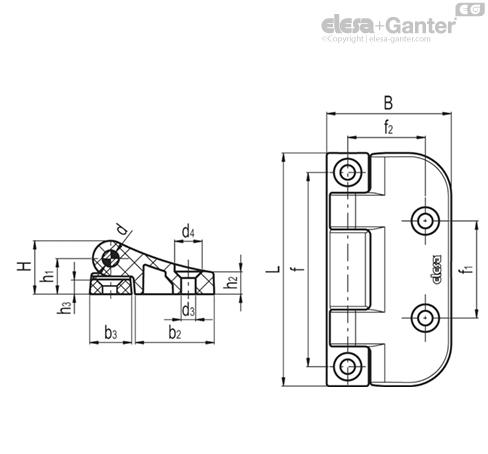

Pass-through holes for countersunk head screws.

Features and applications

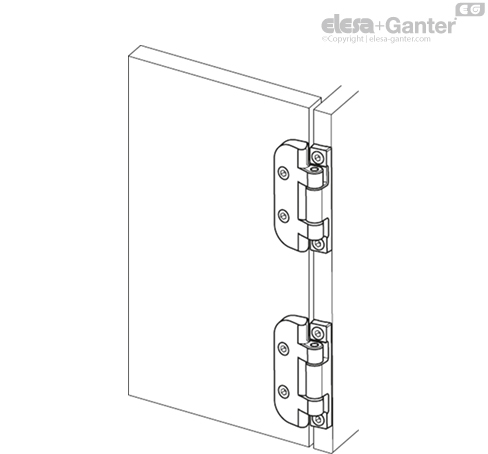

The hinge is made up of two bodies of different sizes (one wide and one narrow) for use, for example, on structures with a narrow jamb.

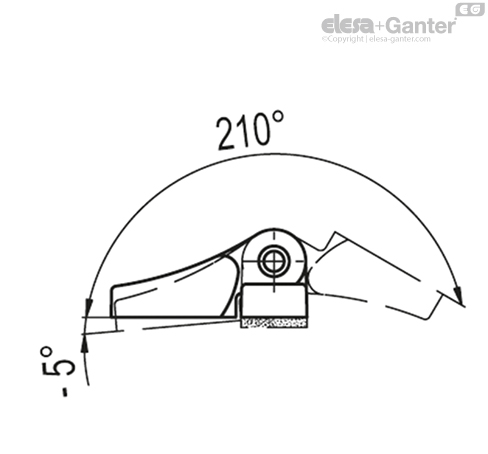

Rotation angle (approximate value)

Max 215° (-5° and +210° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.



Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFDA_S_AXIAL______logo__CFDA_S_RADIAL______logo__CFDA_S_90__
DescriptionMaximum working load
Ea [N]
Load at breakage
Ra [N]
Maximum working load
Er [N]
Load at breakage
Rr [N]
Maximum working load
E90 [N]
Load at breakage
R90 [N]
CFDA.72 SH-4200290040014004001600
CFDA.100 SH-5400320040018008001800
