M.1053-P-SST

Offset tubular handles

Movable handle shanks, technopolymer and stainless steel

M.1053-P-SST

Offset tubular handles
Offset tubular handles

M.1053-P-SST

Offset tubular handles
Offset tubular handles

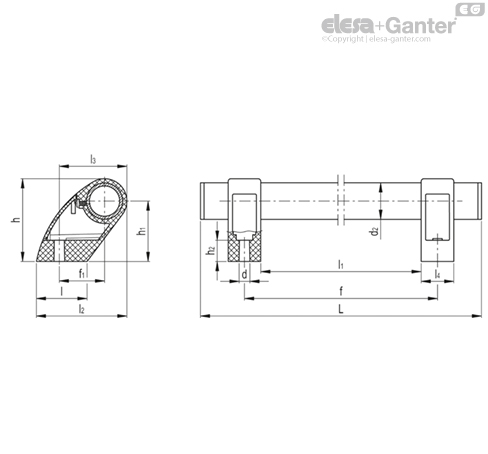

Pass-through handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.

To prevent tube rotation, screw up to the stop the self-tapping screw ø3,9x6,5 arranged inside the handle shank.

Closing caps

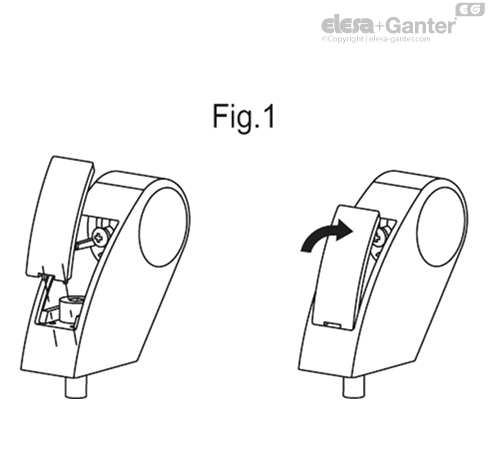

  • ECS.T: polyamide based (PA) technopolymer, RAL 9005 black colour (C9), matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table).



End caps

Polyamide based (PA) technopolymer, matte finish.

Tube

AISI 304 stainless steel.

Mounting

Pass-through hole for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or standard nuts.

Technical data

Tubular handles are characterised by a variable handle shank, the handle shanks being adjustable on the tube by means of the set screw.

Tensile stress: F values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.




Special executions on request

Different lengths.

Accessories on request

  • ECS.T: polyamide based (PA) technopolymer closing caps, RAL 9005 black colour (C9), matte finish, press-fit assembly (see table). For sufficient quantities, it can be supplied in other colours.
