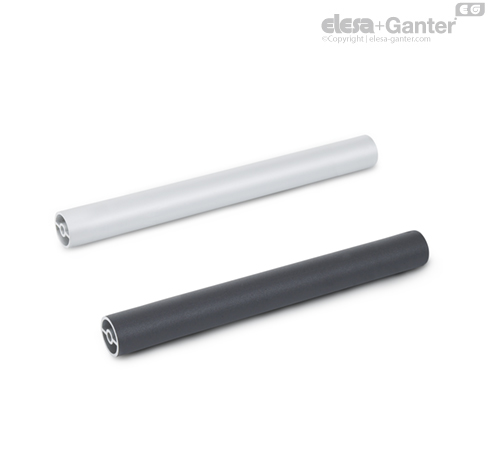

GN 930

Handle tubes

with screw channel

GN 930

Handle tubes
Handle tubes

GN 930

Handle tubes
Handle tubes

Aluminium

plastic coated

black, RAL 9005, textured finish SW

(available up to 3000 mm length)

anodized, natural colour EL

(available up to 2600 mm length)

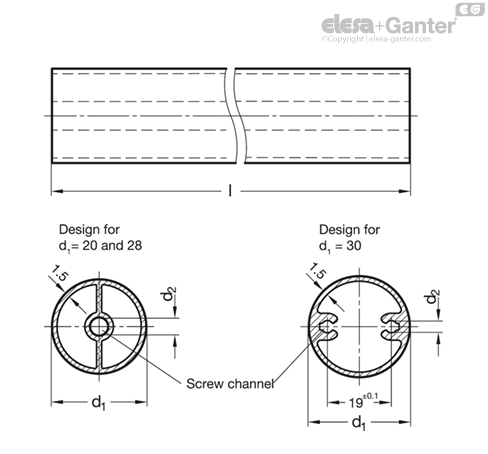

Handle tubes GN 930 with screw channel are designed for use in a variety of different tube handles (e.g, GN 333 ).-

For applications not requiring handle bases, the screw channel provides a very economical fixing solution with thread-tapping screws. The lengths l listed in the table are ex stock lengths. Depending to the finish, any lengths until max. 3000 mm are available.

Plastic cover in black or light grey for tube Ø 28
