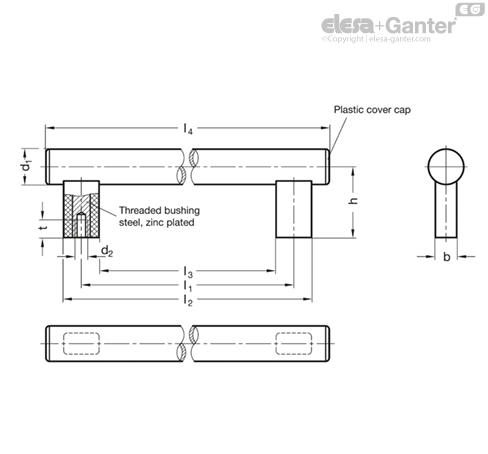

GN 666

Tubular handles

Tube Aluminum / Stainless Steel, Handle Legs Plastic

GN 666-EL

Tubular handles
Tubular handles, Tube Aluminium

GN 666-ELG

Tubular handles
Tubular handles, Tube Aluminium

GN 666-NG

Tubular handles
Tubular handles, Tube Stainless Steel

GN 666-SW

Tubular handles
Tubular handles, Tube Aluminium

GN 666-EL

Tubular handles
Tubular handles, Tube Aluminium

Handle tube

Wall thickness 1,5 mm

  • Aluminum
  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Handle legs / Covers, black, matte finish
  • Powder coated
  • White, similar RAL 9002, matte finish WS
  • Handle legs / Covers, white, matte finish
  • (only for d2 = M8)
  • Anodized, natural color EL
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color ELG
  • Handle legs / Covers, light gray, matte finish
  • Stainless steel AISI 304
  • Ground, matte shiny finish NG
  • Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature up to 100 °C
  • Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

Owing to their large range of variants and their classic design, tubular handles GN 666 are the perfect choice for many applications.

With the modular structure, special lengths are avaiable even in comparatively small unit quantities. Large handle lengths can be supported by additional handle legs.
