GN 666.1

Tubular handles

Tube Aluminum / Stainless Steel, Handle Legs Plastic

GN 666.1-EL

Tubular handles
Aluminium, natural colour

GN 666.1-ELG

Tubular handles
Aluminium, natural colour

GN 666.1-NG

Tubular handles
Stainless Steel

GN 666.1-SW

Tubular handles
Aluminium, plastic coated

GN 666.1-EL

Tubular handles
Aluminium, natural colour

Handle tube

Wall thickness 1,5 mm

  • Aluminum
  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color EL
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color ELG
  • Handle legs / Covers, light gray, matte finish
  • Stainless steel AISI 304
  • Ground, matte shiny finish NG
  • Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature up to 100 °C
  • Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

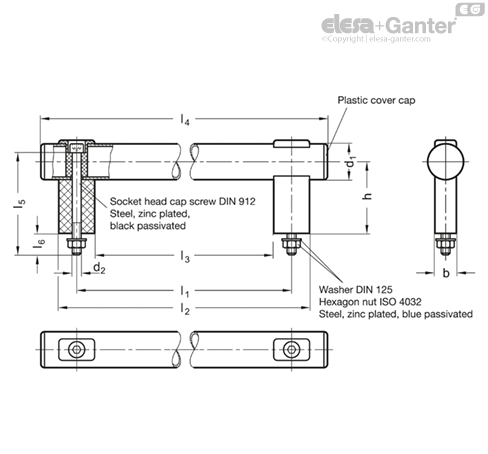

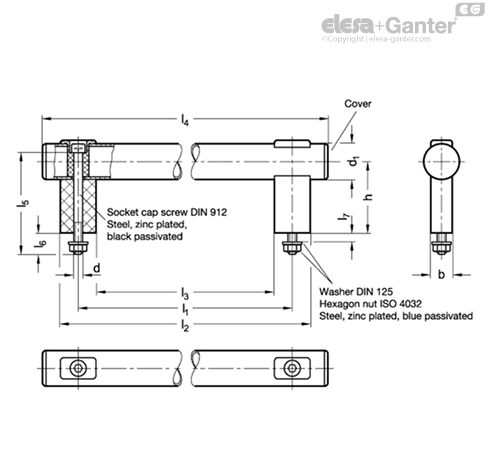

Fastening set

  • Socket cap screws ISO 4762
  • Steel, zinc plated
  • Black passivated for SW / EL / NG
  • Blue passivated for ELG
  • Hex nuts ISO 4032-M8
  • Steel, zinc plated, blue passivated
  • Washers DIN 125
  • Steel, zinc plated, blue passivated

Owing to their large range of variants and their classic design, tubular handles GN 666.1 are the perfect choice for many applications.

The mounting screws included, allow the installation from the back or the operator‘s side. Tubular handles GN 666.1 and GN 666 of identical length are also suitable for double mounting, e.g. for sliding doors.
