GN 335

Oval tubular handles

with inclined handle profile

GN 335-A

Oval tubular handles
Mounting from the back (threaded blind bore)

GN 335-B

Oval tubular handles
Mounting from the operator‘s side

GN 335-EL

Oval tubular handles
Aluminum, natural color

GN 335-ES

Oval tubular handles
Aluminum, plasic coated, silver

GN 335-SW

Oval tubular handles
Aluminum, plastic coated, black

GN 335-A

Oval tubular handles
Mounting from the back (threaded blind bore)

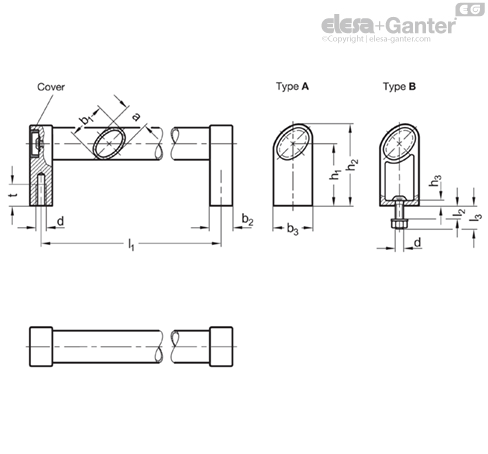

Types

  • Type A: Mounting from the back (threaded blind bore)
  • Type B: Mounting from the operator's side

Handle tube

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Handle legs black
  • Anodized, natural color EL
  • Handle legs black
  • Anodized, natural color ES
  • Handle legs silver

Handle legs

Zinc die casting

Powder coated, textured finish

  • Black, RAL 9005 for SW / EL
  • Silver, RAL 9006 for ES

Cover

Plastic, light gray

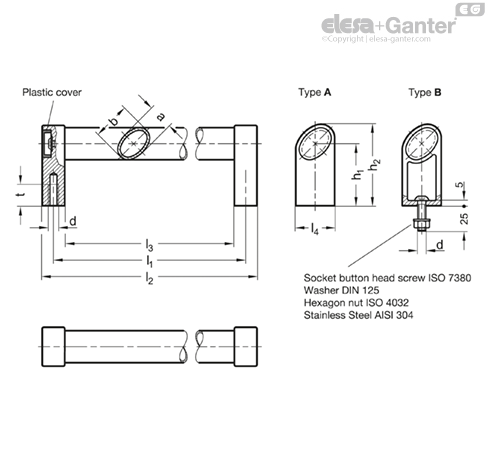

Fastening set for type B

Stainless steel

  • Socket button head screws ISO 7380-M8-30
  • Hex nuts ISO 4032
  • Washers DIN 125

Oval tubular handles GN 335 have an inclined handle profile with a 45° angle. These handles are comfortable and ergonomic to grasp in a variety of applications such as sliding doors.

For type B, socket button head screws, hex nuts and washers are included parts of the order.

The tubular handle can be screwed onto the handle shanks without further modification. This allows even a small quantity of special lengths to be ordered.
