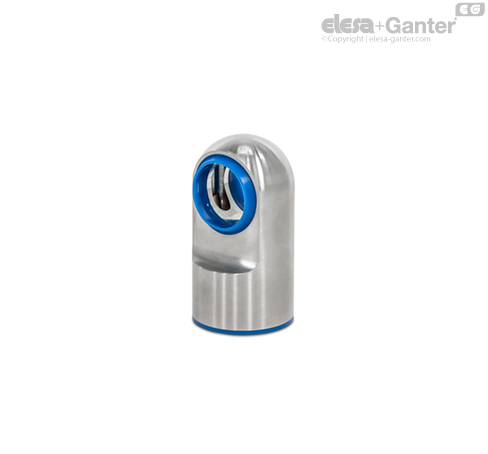

GN 3331

Handle Legs

for Tubular Handles GN 3330, Stainless Steel, Hygienic Design

GN 3331

Handle Legs
Handle Legs

GN 3331

Handle Legs
Handle Legs

Stainless steel AISI 304 NI

Matte finish (Ra < 0.8 µm) MT

Sealing ring and wiper

TPU T

  • Blue
  • Temperature resistant -20 °C to +110 °C
  • Hardness 95 ±5 Shore A
  • FDA compliant

Clamping wedge

Brass

Grub screw

Stainless steel

Handle legs GN 3331 are intended for use in hygienic areas. The sealed mounting surface enables fastening without dead spaces. The high quality finish as well as the non-concave geometry prevent adherence of dirt and facilitate cleaning.

The handle legs are designed for use with tubular handles GN 3330 to reduce large distances between mounting points or excessive loads on the handle legs. Regardless of the handle application, supports can be used to fix rods and tubes with the corresponding diameter d1. The tube or rod is fastened during installation using the integrated clamping wedge.
