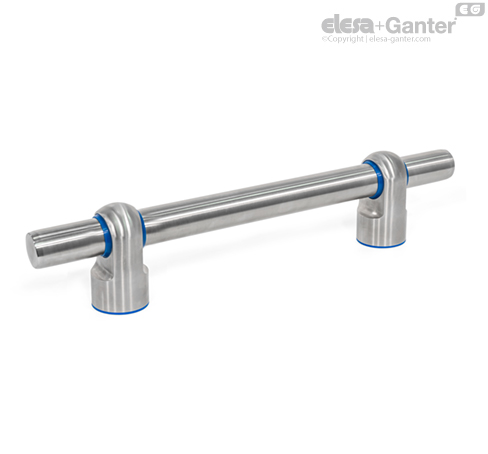

GN 3330

Tubular Handles

Stainless Steel, with Movable Handle Legs, Hygienic Design

GN 3330

Tubular Handles
Tubular Handles

GN 3330

Tubular Handles
Tubular Handles

Handle tube

Stainless steel AISI 304 NI

Ground, matte finish (Ra < 0.8 μm) MT

Handle legs

Stainless steel AISI 304

Matte finish (Ra < 0.8 μm)

Sealing ring and wiper

TPU T

  • Blue
  • Temperature resistant -20 °C to +110 °C
  • Hardness 95 ±5 Shore A
  • FDA compliant

Clamping wedge

Brass

Grub screw

Stainless steel

Tubular handles GN 3330 are designed for use in hygienic areas. The sealed mounting surface enables fastening without dead spaces. The high quality finish as well as the non-concave geometry prevent adherence of dirt and facilitate cleaning.

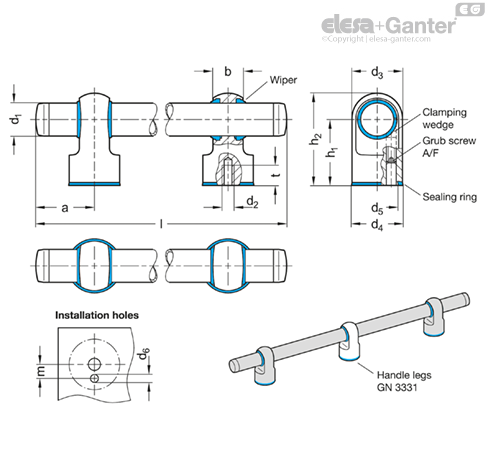

The handle legs are loosely enclosed for fastening to the handle tube using the integrated clamping wedge during installation. The position of the handle legs can be adjusted as required, but must not be less than the minimum distance a, as the tubes may be undersized in the edge area.

For large lengths or loads, additional handle legs can be added. These are available under standard part number GN 3331.
