GN 333

Tubular handles

GN 333-EL

Tubular handles
Aluminium, natural colour

GN 333-ES

Tubular handles
Aluminium, plastic coated, silver

GN 333-SW

Tubular handles
Aluminium, plastic coated, black

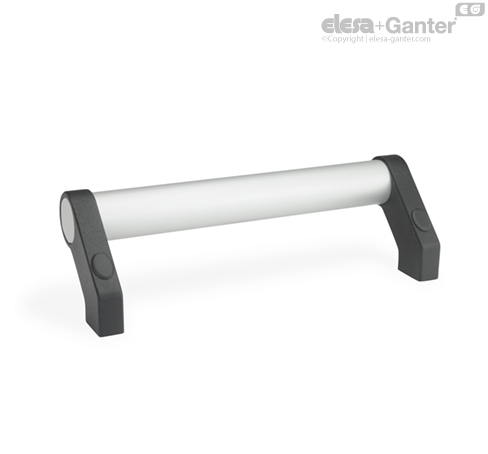

GN 333-EL

Tubular handles
Aluminium, natural colour

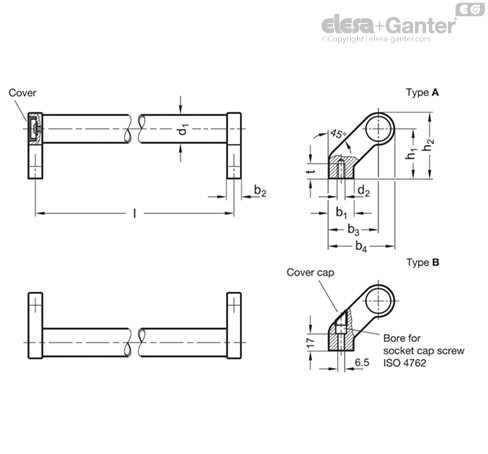

Types

  • Type A: Mounting from the back (threaded blind bore)
  • Type B: Mounting from the operator´s side (only for d1=28)

Handle tube

Aluminium (wall thickness 1.5)

Handle shanks

Zinc die casting

Tube, plastic coated

black, RAL 9005, textured finish SW

Handle shanks plastic coated

black, RAL 9005, textured finish

Tube, anodized, natural colour EL

Handle shanks plastic coated

black, RAL 9005, textured finish

Tube, anodized, natural colour ES

Handle shanks plastic coated

silver, RAL 9006, textured finish

Cover caps plastic, light grey

Cap (Type B)

Plastic (Technopolymer)

black (for SW / EL)

ligth grey (for ES)

The handle tube of the GN 333 tubular handles can be screwed to the handle bases without further machining or processing, allowing special lengths to be realised easily.

A typical application area for tubular handles GN 333 are double-winged doors at machines or devices.
