ETH.

Tubular handles

Technopolymer and aluminium

ETH-AN

Tubular handles
Anodised aluminium tube

ETH-CLEAN

Tubular handles
Aluminium tube with white coating

ETH-EP

Tubular handles
Aluminium tube with epoxy resin coating

ETH-AN

Tubular handles
Anodised aluminium tube

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.

Side caps

  • ECA.T: polyamide based (PA) technopolymer, in Elecolors colours and white similar to RAL 9002 (CLEAN), glossy finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold seoarately (see table).

Anti-rotation tube assembling system

Special expansion-assembly system between the tube and the handle shanks to prevent rotation during operation.

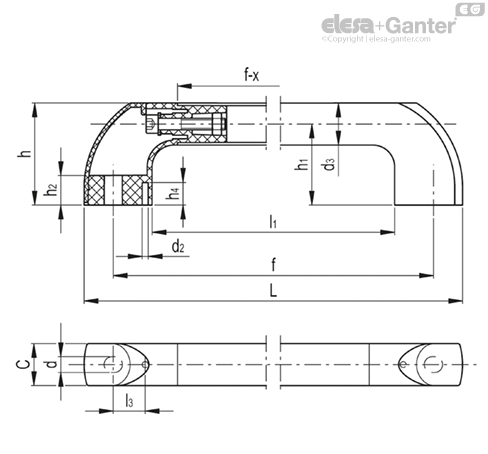

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.

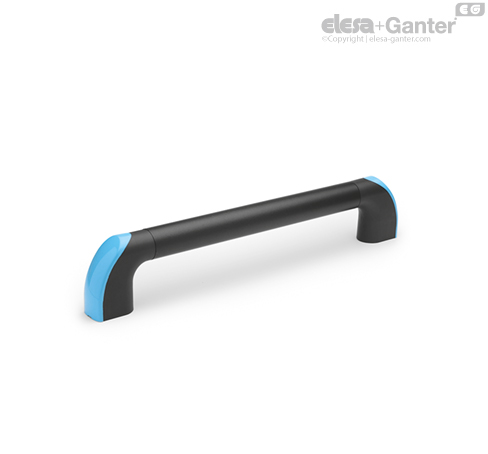

  • ETH-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam. Side shanks in grey-black colour.
  • ETH-AN: anodised aluminium tube, natural colour. Side shanks in grey-black colour.

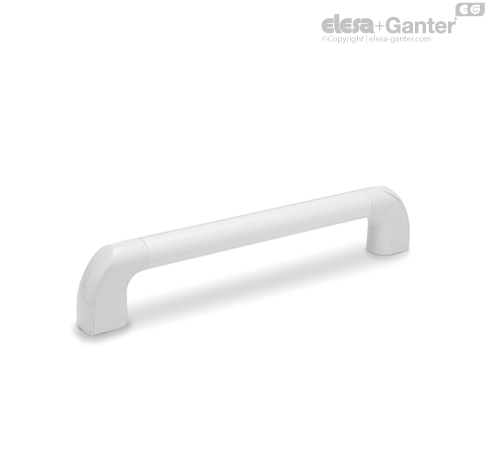

  • ETH-CLEAN: aluminium tube, coating in white colour similar to RAL 9002, glossy finish. Side shanks in white colour similar to RAL 9002.

Suggested tightening torque:

  • back mounting with plain holes: 8 [Nm]
  • front mounting with plain or tapped holes: 15 [Nm].

Ergonomy and design

The large diameter of the tube offers a good and comfortable grip; the antirotation assembly system of the handle shanks to the tube has been developed to offer a firm and secure manœuvrability during operations.

Technical data

Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.



Special executions on request

Different lengths.

Accessories on request

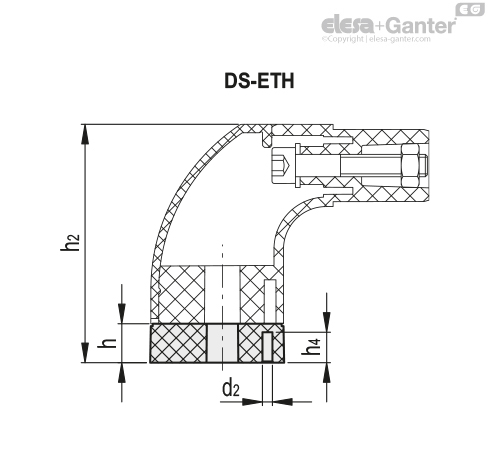

  • DS-ETH: spacer sleeves in polyamide based (PA) technopolymer to increase the distance between the handle and the fitting surface.
  • ECA.T: polyamide based (PA) technopolymer side caps, in Elecolors colours and white similar to RAL 9002 (CLEAN), glossy finish, press-fit assembly.

DS-ETH

CodeDescriptiond2hh2h4For handle
15251DS-ETH.35-16416101.512.5ETH.35
15253DS-ETH.35-32432.511815ETH.35
15256DS-ETH.35-16-CLEAN416101.512.5ETH.35
15258DS-ETH.35-32-CLEAN432.511815ETH.35
