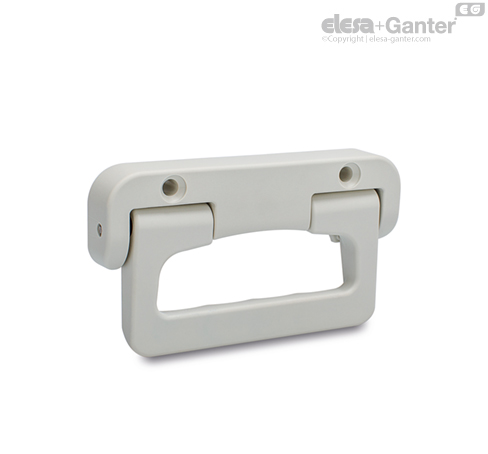

Glass-fibre reinforced polyamide based (PA) technopolymer.
Pass-through holes for countersunk-head screws with cross mark ISO-7046-1-M6 (not included in the supply).
AISI 303 stainless steel pin, AISI 302 stainless steel springs.
The lifting resistance (F1) and tensile strength (F2) values reported in the table are the result of permanent deformation by means of the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Drill holes with centre distance 80 +0.1/-0.1 in the sheet.
