GN 425.8

Folding handles with recessed tray

GN 425.8

Folding handles with recessed tray
Folding handles with recessed tray, Steel

GN 425.8-NI

Folding handles with recessed tray
Folding handles with recessed tray, Stainless Steel

GN 425.8

Folding handles with recessed tray
Folding handles with recessed tray, Steel

Types

  • Type A: with handle locking in the folded up or folded down position
  • Type B: with spring return of the handle in the folded down position

Tray

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Folding handle

Version in Steel

chrome plated CR

Version in Stainless Steel AISI 303

matt shot-blasted NI

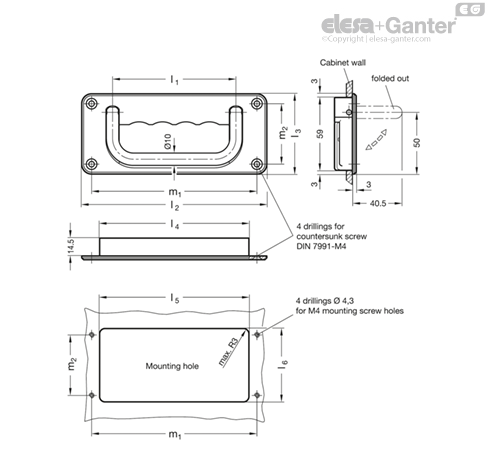

The folding handles with recessed tray GN 425.8 are used if the handle is to protrude by a maximum of 3 mm when folded down.

In type A, the folding handle is held in both end positions by spring-loaded thrust pieces.

In type B, the folding handle always spring-returns to the starting position after being released, preventing it from protruding with potentially interfering effect.
