With two slow action electrical contacts with double interruption Zb shaped (see IEC EN 60947-5-1) which can be set in normally open (NO) or normally closed (NC) mode in production.
Positive opening in compliance with IEC EN 60947-5-1 annex K: the separation of the electrical contacts is the direct result of an actuator action on which an action force is applied by means of non elastic elements, that is to say not dependant on, for example, spring-like elements.
The contact elements guarantee a self-cleaning action of the silver pastes.
Type RGB, supply voltage 24Vdc +/- 10%. Colour tones may vary slightly depending on the power supply voltage.
Brass bushings, M6 threaded blind holes for rear mounting.
Plastic connector with 8 poles, back output.
8-pole cable UL: AWG22 RAL9005 PVC UL AWM Style 1569/2517, back output.
IP67 protection class, see Table EN 60529.
|Mechanical features||Electrical features|
|Type of contacts: Ag 999||Thermic power lth||Cable 4 A|
|Connector 2.5 A|
|Insulation nominal UI voltage||Cable: 250 Vac|
|Maximum operating frequency: 3600 cycles/hour *||Connector: 30 Vac/Vdc|
|Short circuit protection: 4A 500V gG||Resistance between contacts: 25 mΩ|
|Mechanical life-span: 10 million *||Category of use (cable)|
|le/AC-15 **||24V-50/60 Hz||4A|
|Key action force:30N (IP67 version)||Category of use (connector)|
|Cable bending radius > 70 mm||le/DC-13 (according to IEC 60947-5-1)||24V-d.c.||2A|
|B10D: 20 million manoeuvres||Pollution degree: 3|
* according to standard EN 60947-5-1
** according to standard EN 60945-5-1

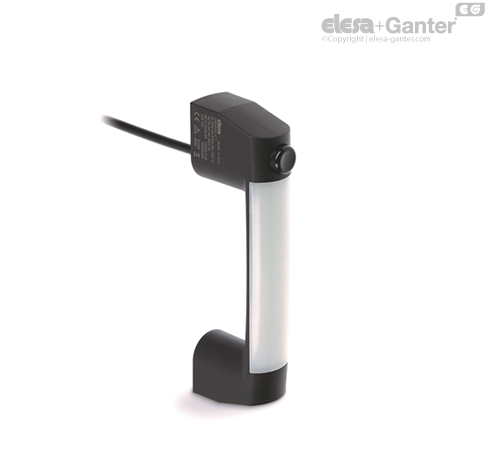

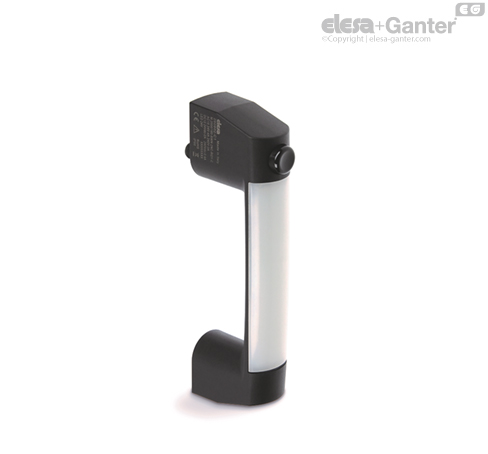

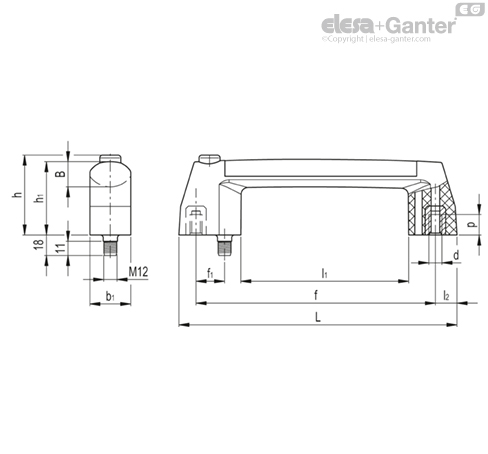

The M.2000-SWM handle is an ideal combination of ergonomics, functionality, and compactness.
In addition to the handle function, it integrates in a single product the function of signalling light column and control box with normally open or normally closed contacts. These handles are typically assembled on machine doors or protections. With the appropriate electrical connection, it is possible to configure the colour of the LED strip to indicate the status of the guard (IEC 60204-1).
By pressing the button, the operator may request access, through external logic, to the protected area or reactive the machinery following an interruption.
Staff protection: the action NC (normally closed) switch ensures correct interruption of the circuit.

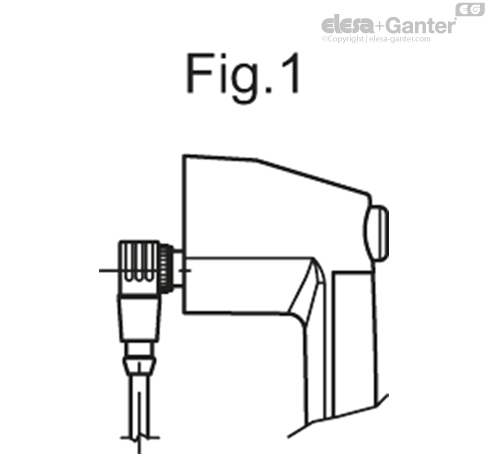

In case of use of an extension with angled connector, the direction of the cable output is shown in Fig.1.
Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out under the test conditions shown in the figure with ambient temperature.
With appropriate cabling, it is possible to obtain one of the 7 colours of the LED strip.
The common contact (8) corresponding to the white wire (cable version) must always be connected to the negative pole of the power supply. Contacts 6 (red wire), 7 (green wire), or 1 (blue wire) can be connected individually to the positive pole to respectively obtain the red, green, and blue colour of the LED strip, or connected simultaneously to obtain the remaining colours, as indicated in the table below. Other colours are possible by controlling the brightness of the individual channels with the PWM technique.
Non-IP67 handle, with reduced key action force (15N). To order this, add the suffix -N15 to the code and description of the desired standard execution.
M.2000: single complementary handle without switch.
