GN 559

Cabinet U-Handles

Aluminum

GN 559

Cabinet U-Handles
Cabinet "U" handles

GN 559-A

Cabinet U-Handles
Closed type

GN 559-B

Cabinet U-Handles
Open ended type, mounting from the back (threaded blind bore)

GN 559-C

Cabinet U-Handles
Open ended type, mounting from the operator‘s side

GN 559

Cabinet U-Handles
Cabinet "U" handles

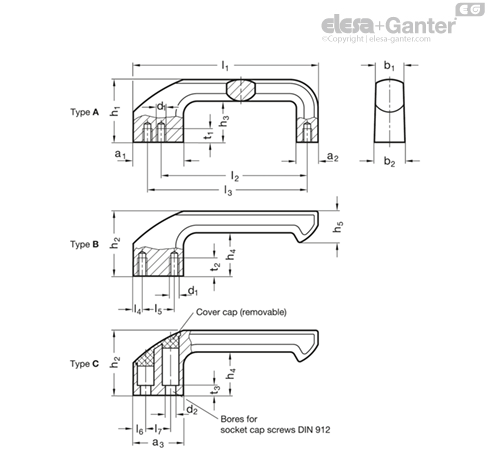

Types

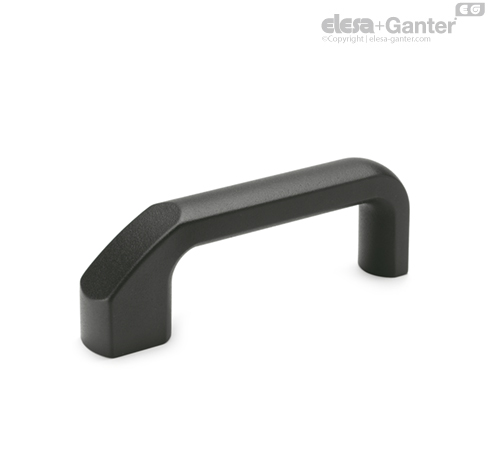

  • Type A: closed type
  • Type B: open ended type, mounting from the back (threaded blind bore)

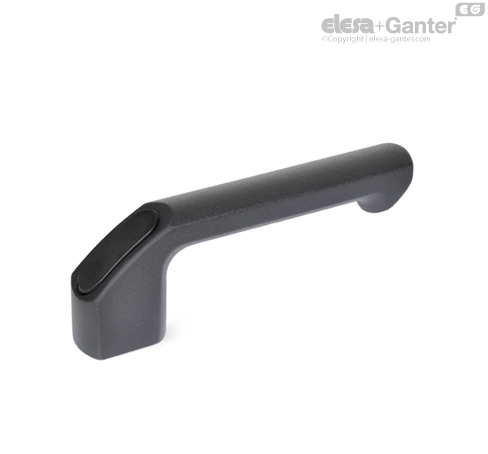

  • Type C: open ended type, mounting from the operator´s side

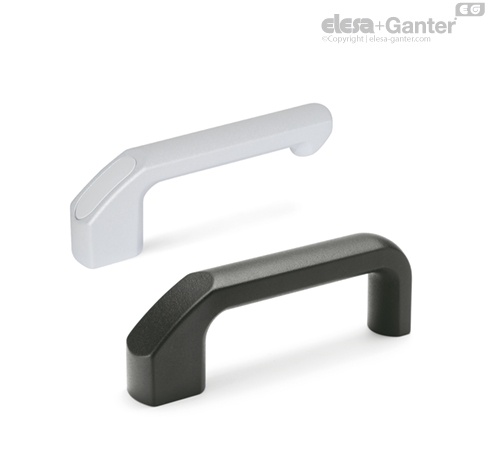

Aluminium

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Cap (type C)

Plastic

black for SW

light grey for SR

A special characteristic of the Handle GN 559 is the thumb rest pad on the front of the leg.

At the same time the extended leg offers an open ended version with wide access.

Handles GN 559 are known for their high stability. They are fixed by two M8 screws whereby type A offers two alternative hole centers (l2 or l3).
