GN 3310


with light button

GN 3310


GN 3310


Contact type

  • Type W: Changeover contact


  • Lighting RG: red/green (bi-color)

Identification no.

  • Identification no. 2: Button rounded

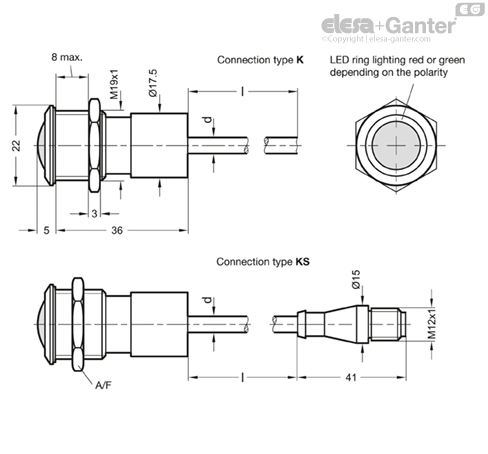

Connection types

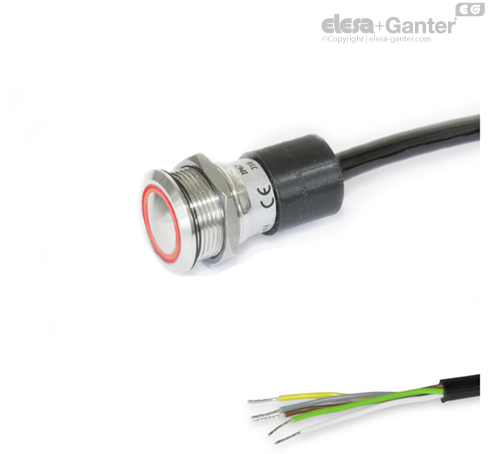

  • Connection type K: Cable

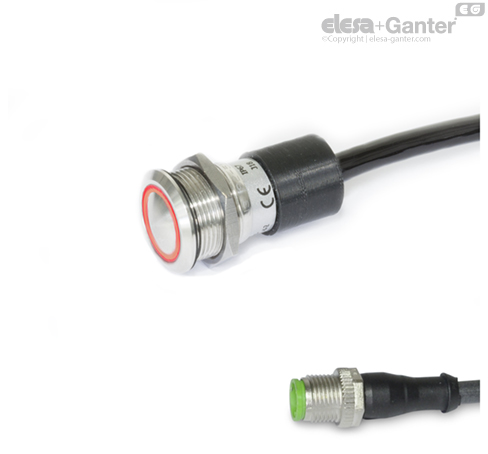

  • Connection type KS: Plug


Stainless Steel AISI 304

Cable (Outer sheath)

Polyurethan PUR


Hexagon nut

Stainless Steel AISI 304

Light guide


crystal-clear Polycarbonate (PC)

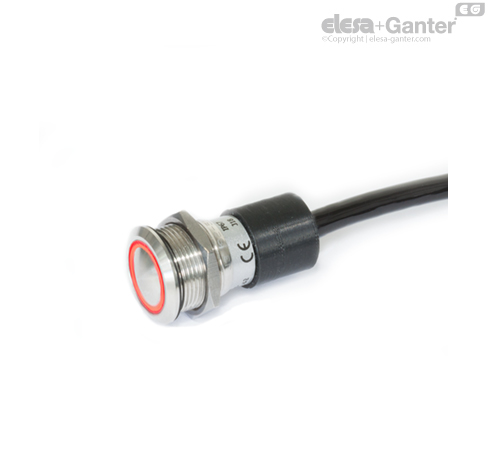

GN 3310 switches with a light button come with a changeover switch and integrated LED ring light.

When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO).

Independent whether or not the button is actuated, the integrated LED ring lighting shines either red or green depending on the polarity of connections 1 and 2 of the LED.

  • Cables with connector coupling M12x1 GN 330

Electrical and mechanical properties
Contactschangeover contact, snap contact
Contact materialsilver alloy
Switching voltagesmax. 125 V (plug)
max. 240 V (cable)
Switching currentmax. 3 A
mech. lifespan106 switching cycles
elect. lifespan50.000 switching cycles (under full load)
LED ring lighting24 V DC ± 10 % / 7 mA____logo__422_SB-21198-0__
Operating voltage / operating current
- bi-color (red / green)
Category of use (button)AC 15: 24 V AC / 1 A / DC 13: 24 V DC / 0.7 Aaccording to IEC 60947-5-1
AC 15: 110 V AC / 1 A / DC 13: 110 V DC / 0.2 A
AC 15: 220 V AC / 0.5 A / DC 13: 220 V DC / 0.1 A
AC: 120 V AC / 5 A / DC: 12 V DC / 1 Aaccording to UL 508
AC: 240 V AC / 3 A
Connection type-____logo__422_SB-21196-0__
Cable (K)PUR cable with open stranded wires (2 m or 5 m)
Plug connector (S)5-pin connector M12x1 with PUR cable 0.25 m
Protection classIP 67
Tightening torque5 - 12 Nm
Mounting cut-outØ 19 +0.1
+0.3 mm
Approvals, conformity declarations____logo__ce__
CE marking
