GN 30i

Angle Brackets

Zinc Die Casting, for Aluminum Profiles (i-Modular System), with or without Accessory

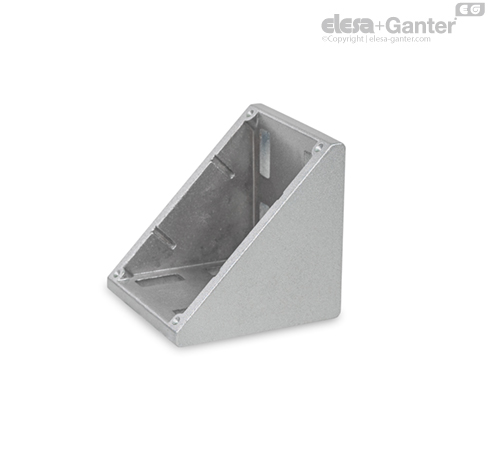

GN 30i-A-ZW

Angle Brackets
Type A, painted, white aluminum

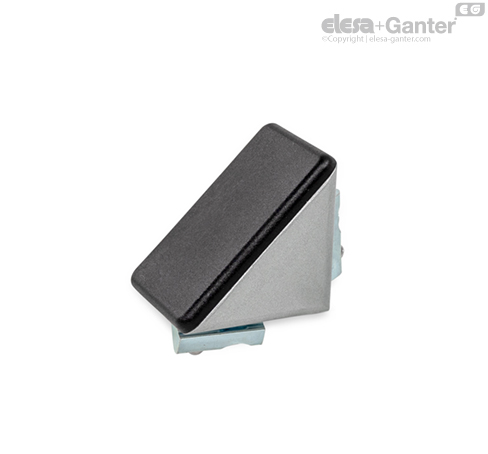

GN 30i-C-ZWSZS

Angle Brackets
Type C, painted, white aluminum, steel, zinc plated, black

GN 30i-A-ZW

Angle Brackets
Type A, painted, white aluminum

Types

  • Type A: Without accessory
  • Type C: With fastening set and cover cap

Angle bracket

Zinc die casting

Painted, white aluminum ZW

Screws and T-Nuts (only for Type C)

Steel, zinc plated, blue passivated SZ

Cover cap (only for Type C)

Plastic (Polyamide PA)

Black S

Angle brackets GN 30i fasten aluminum profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.

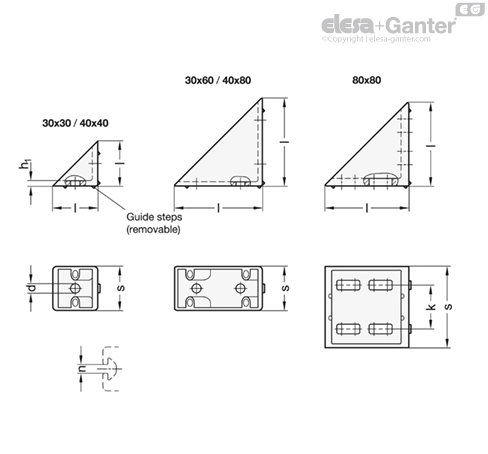

The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminum profile, the guide steps must be broken off.

The cover caps ensure a visually appealing appearance and simplify cleaning (type C).

  • Only for Type A:
