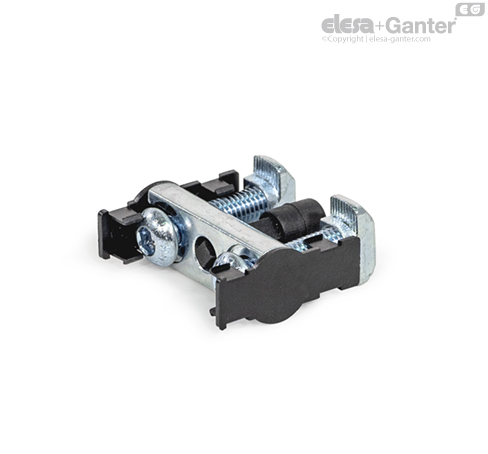

GN 26b

Bolt Connectors

Steel, for Aluminum Profiles (b-Modular System)

GN 26b

Bolt Connectors
Bolt Connectors

GN 26b

Bolt Connectors
Bolt Connectors

Type

  • Type N: Nut without increased torque

Coding

  • C: With fastening set

Connector, screws, T-slot nuts

Steel, zinc plated, blue passivated SZ

Cover cap

Plastic (Polyamid PA)

Black S

Guide pin

Plastic, black

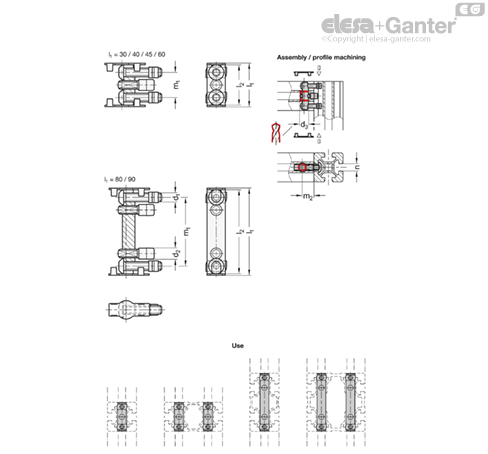

Bolt connectors GN 26b fasten aluminum profiles at right angles and secure them against twisting. Only one profile has to be machined.

The connection can be freely positioned and slid along the slot. It is suitable for absorbing high loads, including torsional loads in particular.

The cover caps ensure a visually appealing appearance. If panels are used, they must be suitably pocketed.
