GN 25b

Quick Release Connectors

Steel, for Aluminum Profiles (b-Modular System), Asymmetrical or Symmetrical Mounting Stud

GN 25b-A

Quick Release Connectors
Asymmetrical mounting stud

GN 25b-S

Quick Release Connectors
Symmetrical mounting stud

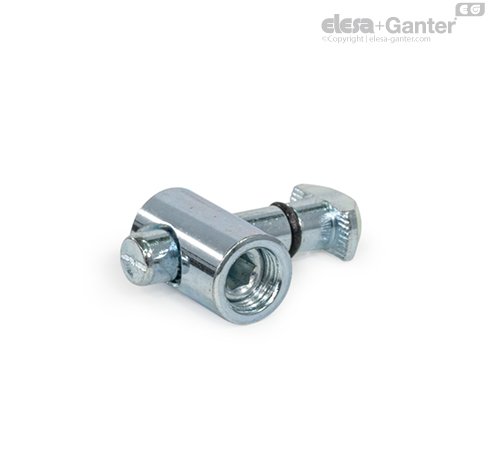

GN 25b-A

Quick Release Connectors
Asymmetrical mounting stud

Types

  • Type A: Asymmetrical mounting stud
  • Type S: Symmetrical mounting stud

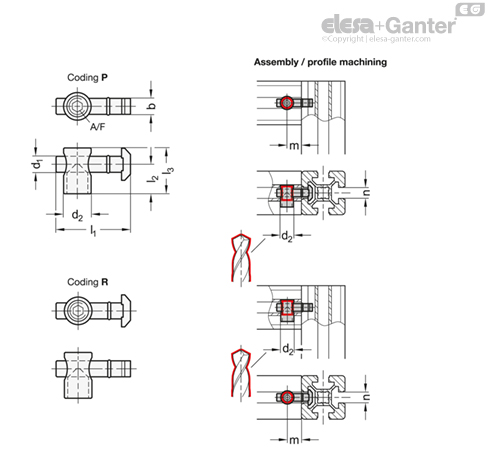

Coding

  • P: Parallel T-nut
  • R: Right-angle T-nut

Steel, zinc plated, blue passivated SZ

Quick release connectors GN 25b fasten aluminum profiles together at right angles. Only one profile has to be machined.

The connection can be freely positioned and slid along the slot. The internal hex used for clamping is situated for especially easy access.

If panels are used, they must be suitably pocketed, depending on the type, coding and installation orientation.

Quick release connectors of type S are used when the slot is to be closed by a cover profile.

Quick release connectors are supplied in bundles. The table shows the quantity included in each bundle.
