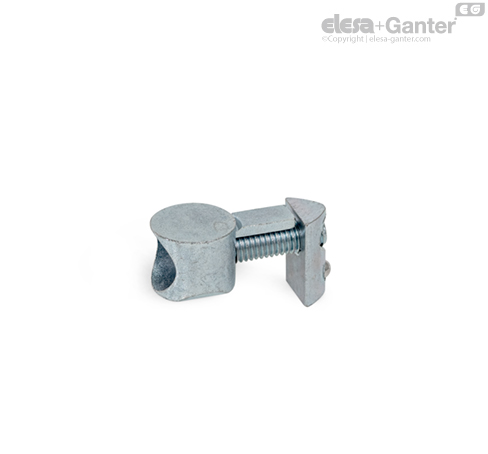

GN 22i

Universal Connectors

Zinc Die Casting, for Aluminum Profiles (i-Modular System)

GN 22i

Universal Connectors
Universal Connectors

GN 22i

Universal Connectors
Universal Connectors

Type

  • Type V: With anti-twist protection

Coding

  • C: With screw and T-nut

Housing

Zinc die casting, zinc plated ZZ

Screw and T-nut

Steel, zinc plated, blue passivated SZ

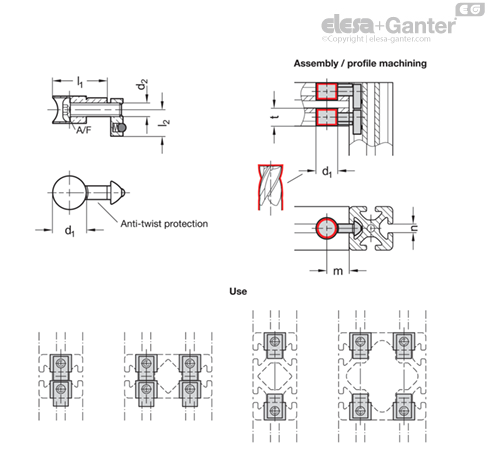

Universal connectors GN 22i fasten aluminum profiles together at right angles and, when used in pairs, secure them against twisting. Only one profile has to be machined.

The connection can be freely positioned and slid along the slot. The anti-twist protection can be easily removed thanks to its predetermined breaking point, allowing installation at any angle relative to the profile slot. If panels are used in the slot, they must be suitably pocketed.

Universal connectors are supplied in bundles. The table shows the quantity included in each bundle.
