GN 20i

Standard Connectors

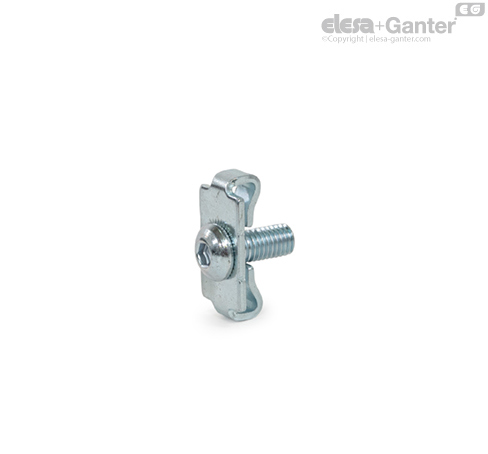

Steel, for Aluminum Profiles (i-Modular System)

GN 20i

Standard Connectors
Standard Connectors

GN 20i

Standard Connectors
Standard Connectors

Type

  • Type D: Doubled

Coding

  • C: With screw

Steel, zinc plated, blue passivated SZ

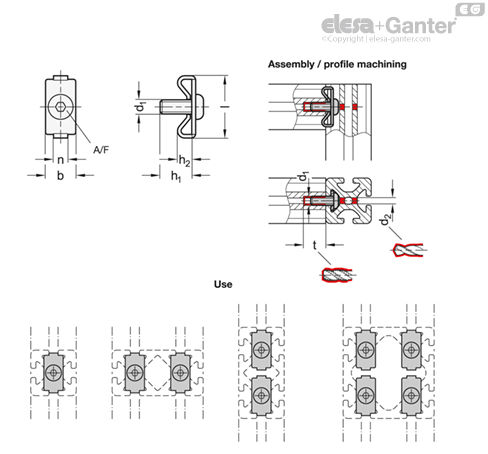

Standard connectors GN 20i fasten aluminum profiles at right angles and secure them against twisting. This requires machining of both profiles. The internal thread can be cut directly into the end face profile holes.

If panels are used in the slot, they must be suitably pocketed.

Standard connectors are supplied in bundles. The table shows the quantity included in each bundle.
