IR.620

Fold-away handles

Technopolymer

IR.620

Fold-away handles
Fold-away handles

IR.620

Fold-away handles
Fold-away handles

Material

Polyamide based (PA) technopolymer handle, black colour, matte finish.

Standard executions

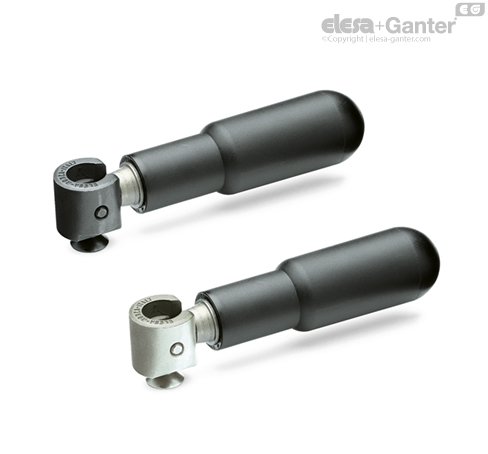

  • IR.620: black-oxide steel stud, sintered and oxidised steel flat base for embedded mounting, black-oxide steel screw.
  • IR.620-SST: AISI 303 stainless steel stud, sintered AISI 303 stainless steel flat base for embedded mounting, AISI 303 stainless steel screw.

Features and applications

Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.

This series of fold-away handles has been designed for all those applications for which, owing to lack of space or for safety reasons, the handle must be folded-away once the operation has been completed.
