RLS-U

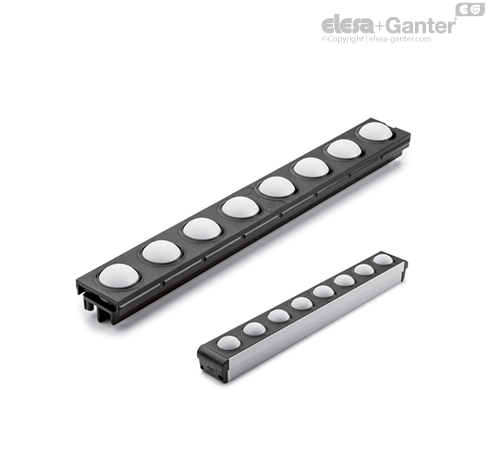

Ball elements for ELEROLL roller tracks

Technopolymer

RLS-U

Ball elements for ELEROLL roller tracks
Ball elements for ELEROLL roller tracks

RLS-U

Ball elements for ELEROLL roller tracks
Ball elements for ELEROLL roller tracks

Balls

Acetal resin based (POM) technopolymer, white colour.

Ball holder

Polyamide based (PA) technopolymer, black colour.

Features and applications

  • The ball elements, suitably fixed within the RLT-AL aluminum profiles (Fig. 1) create modular roller tracks for idle omnidirectional handling.
  • The ball elements can be combined with RLT-U roller elements for various applications in different fields: feeding and discharging benches in construction machinery, storage and picking systems, packaging machinery, etc.
  • The low friction coefficient between the ball and the ball holder eliminates the need for lubrication maintenance.
  • The particular section of RLT-AL profile allows the snap-in assembly of the ball elements into the profile without the need for screws or other fasteners (Fig.1).
  • The ball elements are divisible in correspondence of predefined sections (Fig.2) so as to create roller tracks of the precise required length.
  • The balls may be removed and replaced without disassembling the entire roller track, by using a common screwdriver in the appropriate notch cut into the ball holder (Fig. 3).

Technical data

See: ELEROLL Modular roller tracks-.
