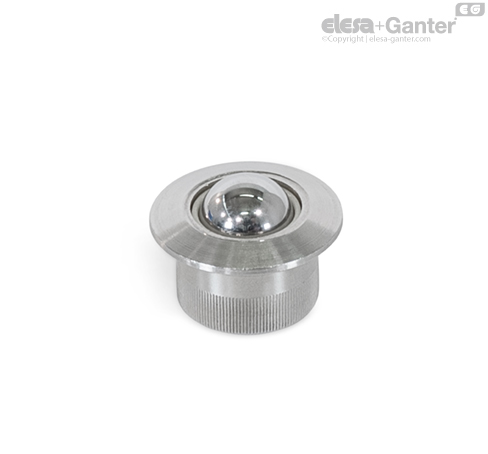

GN 509.10

Ball Transfer Units

Stainless Steel, with Collar, with Friction Bearing

GN 509.10

Ball Transfer Units
Ball Transfer Units

GN 509.10

Ball Transfer Units
Ball Transfer Units

Housing

Stainless steel AISI 303 NI

Ball

Stainless steel AISI 420C, hardened

Friction bearing

Plastic

Operating temperature -50 °C to +90 °C

Ball transfer units GN 509.10 are used for building mechanisms and devices. The friction bearing of the ball ensures low-friction displacement and rotation of workpieces in any direction.

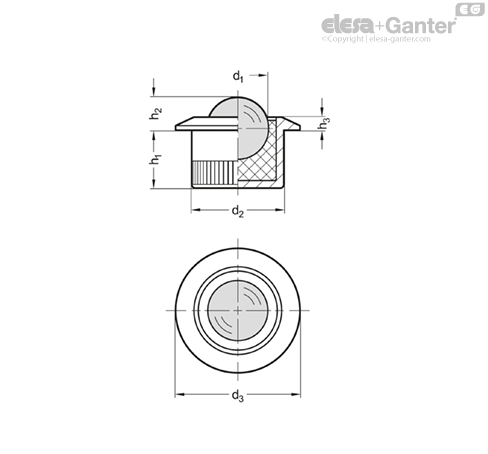

A tolerance of H7 for the location hole of d2 is recommended.
