GN 736

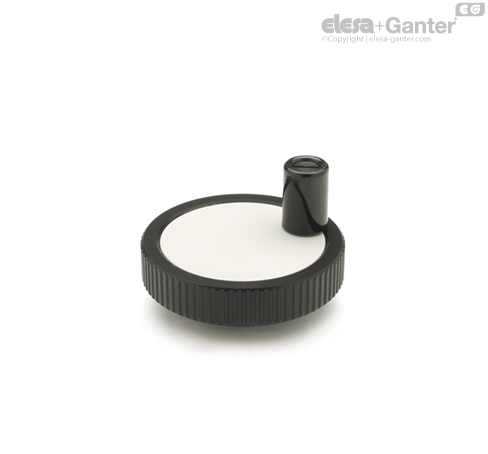

Control handwheels

Aluminium black, anodized

GN 736

Control handwheels
Control handwheels

GN 736

Control handwheels
Control handwheels

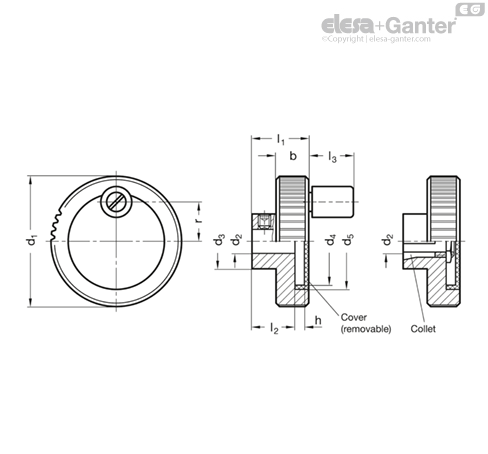

  • Type A: without handle
  • Type D: with revolving handle

Bore codes

  • Version B: without keyway
  • Version K: with keyway
  • Version Z: with collet


anodized, black

Hub cover

Plastic, light grey

Collet / Hexagon nut


Stainless Steel-Grub screw DIN 916

with internal hexagon and serrated point

Revolving cylindrical handles

  • Plastic, technopolymer, black matt
  • Spindle, Stainless Steel AISI 303

Control handwheels GN 736 are used for setting operations with low torque.

Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the handwheel.
