GN 436.1

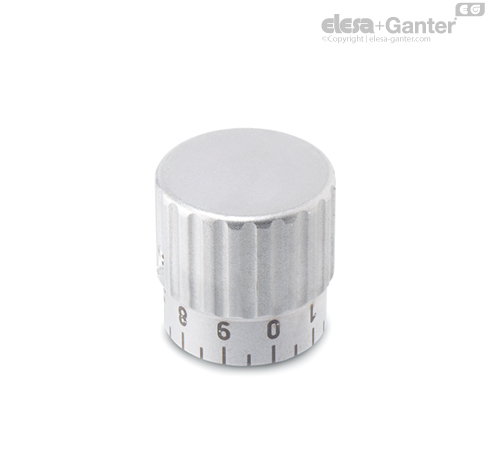

Stainless Steel-Knurled Control knobs

GN 436.1

Stainless Steel-Knurled Control knobs
Stainless Steel-Knurled Control knobs

GN 436.1

Stainless Steel-Knurled Control knobs
Stainless Steel-Knurled Control knobs

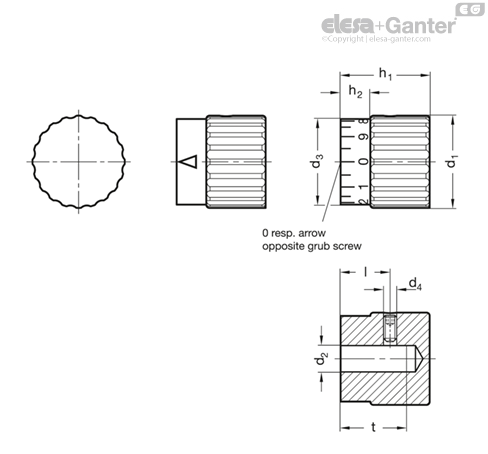

Types

  • Type A: with arrow
  • Type B: neutral, without arrow or scale
  • Type S: with standard scale 0...9, 20 graduations

Stainless Steel AISI 304

matt shot-blasted MT

Scale (Type S) and arrow (Type A)

engraved with laser precision

Stainless Steel-Grub screw DIN 916

with internal hexagon and serrated point

Scale and arrow on the Stainless Steel-control knobs GN 436.1 are indelibly marked and easily legible.

Besides the standard scale (Type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet  "How to order graduations"
