GN 511.1

Clamping kits

for swivel clamp mountings

GN 511.1

Clamping kits
Clamping kits

GN 511.1

Clamping kits
Clamping kits

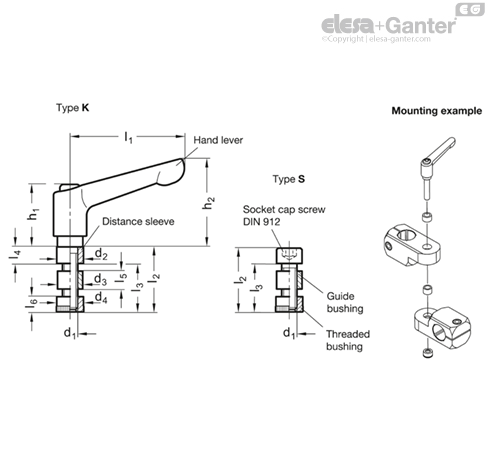

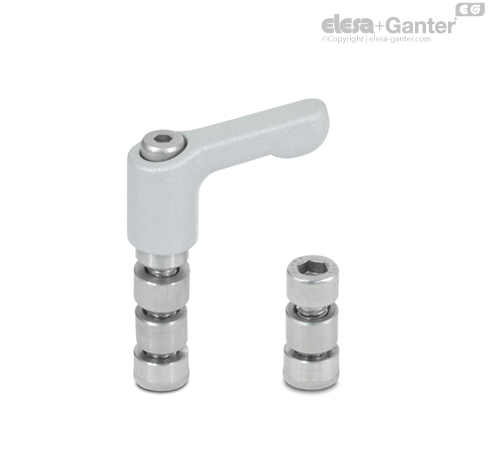

Types

  • Type S: with cylinder head screw DIN 912
  • Type K: with adjustable hand levers

Handle

Zinc die casting

plastic coated

silver, RAL 9006, textured finish

Threaded insert, distance sleeve,

centering bushing, threaded bushing

Stainless Steel AISI 303

Cylinder head screw DIN 912

Stainless Steel AISI 304

With clamping kits GN 511.1 swivel clamp mountings  GN 482 - can be combined with T-Swivel clamp mountings GN 483 - and attachment clamp mountings GN 484 -with the same k-dimensions into swivel clamp mounting joints.

The centering bush positions the swivel clamp mountings in relation to each other. During assembly, the knurled threaded bushing is inserted by the clamping screw itself and by pressing into one of the two swivel clamp mountings and so serves to clamp the articulated joint.

The matching clamping kits are shown in the dimensional tables of the appropriate swivel clamp mountings.
