GN 484

Attachment clamp mountings

Aluminium

GN 484

Attachment clamp mountings
Attachment clamp mountings

GN 484

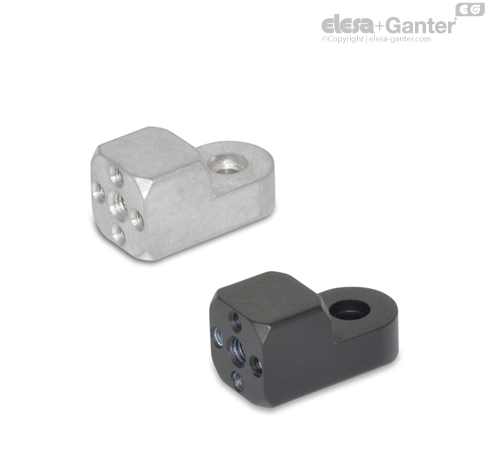

Attachment clamp mountings
Attachment clamp mountings

Aluminium

  • matt, slide ground MT
  • anodized black ELS

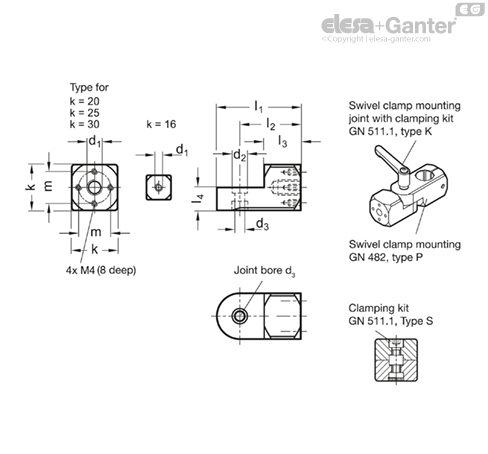

Attachment clamp mountings GN 484 are primarily designed for mounting sensor holders  GN 479  and retaining plate GN 479.1 . They are fitted with a central thread and for the size with k = 20 and higher, an additional bore template 4 x M4.

Using swivel clamp mountings  GN 482  and T-Swivel clamp mountings GN 483  with the same k dimensions, attachment clamp mountings GN 484 are easily combined into articulated swivel clamp mounting joints. Clamping kits GN 511.1 with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
