GN 483

T-swivel clamp mountings

Aluminium

GN 483

T-swivel clamp mountings
T-swivel clamp mountings

GN 483

T-swivel clamp mountings
T-swivel clamp mountings

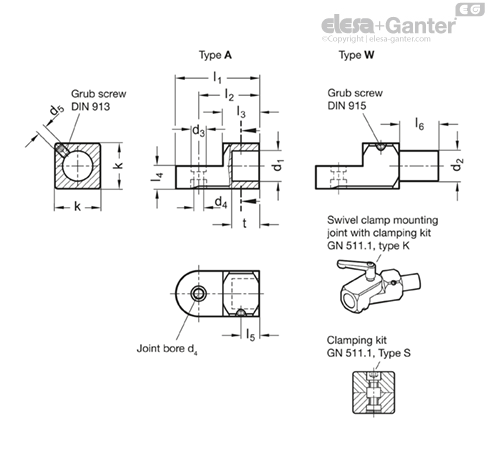

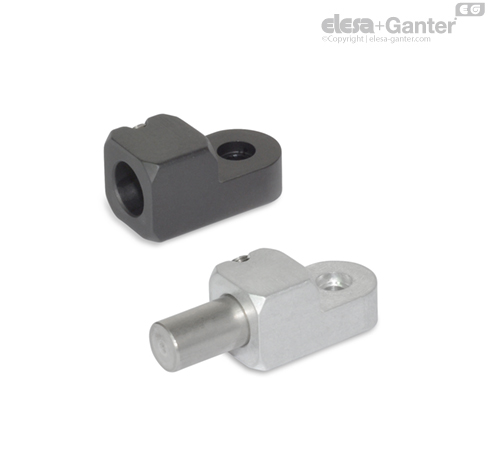

Types

  • Type A: with bore
  • Type W: with bolt

Aluminium

  • matt, slide ground MT
  • anodized black ELS

Bolt (Type W)

Steel zinc-plated, blue passivated

Grub screw DIN 913 (Type A)

Stainless Steel AISI 304

Grub screw DIN 915 (Type W)

Stainless Steel AISI 304

T-Swivel clamp mountings GN 483 can be combined with swivel clamp mountings  GN 482  and attachment clamp mountings GN 484  with the same k dimensions into articulated swivel clamp mounting joints. Clamping kits GN 511.1  with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
