GN 479

Sensor holders

for clamp mountings with threaded holes GN 478 / GN 484

GN 479

Sensor holders
Sensor holders

GN 479

Sensor holders
Sensor holders

Stainless Steel AISI 303

matt-shot blasted

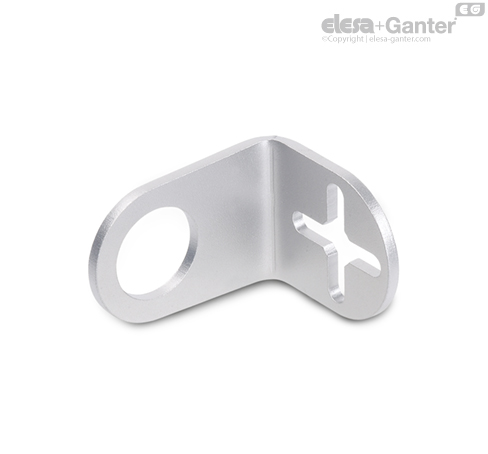

The sensor holders GN 479 are designed for holding sensors attached with two lock nuts.

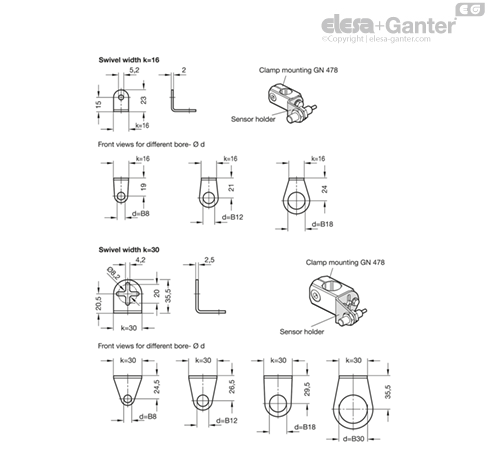

The attachment bore matches the central thread of clamp mountings  GN 478 GN 484  and attachment clamp mountings GN 478 GN 484  . For k=30, the cross-shaped slotted holes provide extra adjustability and allow the use of two fixing screws.

Fixing screws have to be ordered separately.
