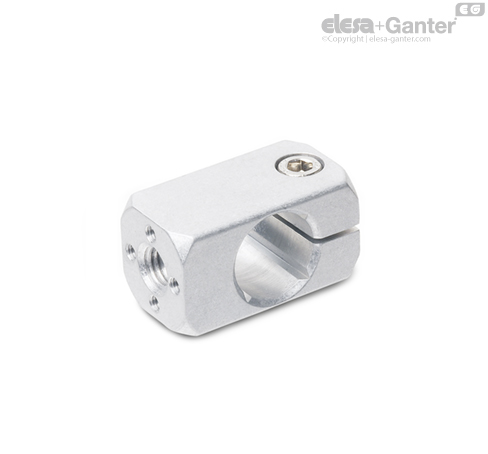

GN 478

Clamp mountings

Aluminium

GN 478

Clamp mountings
Clamp mountings

GN 478

Clamp mountings
Clamp mountings

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Socket cap screw DIN 912

Stainless Steel AISI 304

Clamping kits GN 511

  • Zinc die casting
  • Inserts / Distance bushings, Stainless Steel AISI 303

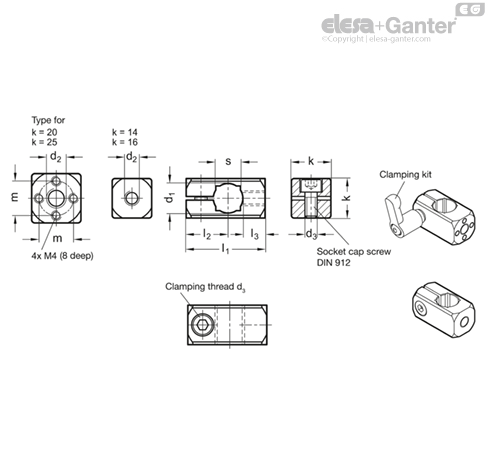

Attachment clamp mountings GN 478 are primarily designed for mounting sensor holders GN 479 and retaining plates GN 479.1. They are fitted with a central thread and with d1 = B15 bore and higher, an additional bore template 4 x M4.

The standard clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an clamping kit GN 511  (see table of dimensions).
